IWATSU Electric Co., Ltd. products

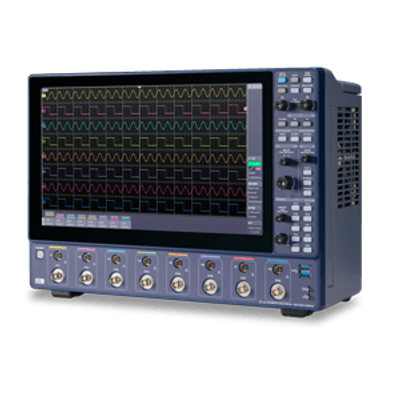

The IWATSU DS-8000 Series is a high-resolution digital oscilloscope designed for precision signal measurement, offering a frequency bandwidth of up to 1GHz and handling up to 8 channels. It features a sampling speed of 5 GS/s when channels are coupled and boasts a vertical resolution of 12 bits, extendable to 16 bits in high-resolution mode for detailed waveform analysis. The oscilloscope's 15.6-inch Full HD touch panel enhances usability by providing a clear and detailed view of waveforms while simplifying operation through intuitive touch controls and manual buttons. This oscilloscope is ideal for applications in automotive, component, and semiconductor industries, where rapid startup and low-noise signal analysis are critical. Additionally, its design allows for quick boot-up, four times faster than other products, enabling immediate measurement operations.

The CS-8000 Series Semiconductor Curve Tracer by IWATSU is a robust tool for evaluating the design characteristics of wide-gap semiconductors such as Silicon Carbide (SiC) and Gallium Nitride (GaN). Equipped with a Source Measure Unit (SMU) capable of delivering up to 5kV and 2kA, this series supports pulse output, gate pattern, and microcurrent measurement, streamlining the analysis process. The CS-8000 Series, along with other models like the CS-3000, 5000, and 10000, provides automated testing for semiconductors including IGBTs, MOSFETs, transistors, and diodes, catering to both small and large capacity requirements. It integrates seamlessly with the CS-810 parameter measurement software for recording, evidence evaluation, and advanced management of the temperature characteristics of multiple elements. Additional features, such as remote control, Ethernet connectivity, and customizable sweep functions, enhance its usability and ensure precise, automated testing with high PC compatibility.

The VOAC7602 digital multimeter, manufactured by IWATSU, is equipped with a 4.3-inch high-resolution LCD display made in Japan, offering exceptional brightness and a wide viewing angle. Users can choose between two numeric fonts and two background colors to tailor the display to their preferences. The device supports various display modes including real-time values, an analog meter display, and limit judgments, without requiring a computer for operation. Its interface facilitates easy adjustments and quick operation, suitable for efficient and busy measurement environments. The VOAC7602 also features a unique digital needle display for approximations and leverages a judgment function by altering needle color as criteria are surpassed. This multimeter provides extensive logging capabilities, boasting a memory capacity of up to 100k readings, allowing for over 24 hours of 1-second interval data logging. The device's swift start-up and instantaneous log memory make it a reliable choice for demanding applications.
