Jiangsu Wantai Motor Co., Ltd. products

20BYGH Stepper Motor is a 20mm two-phase stepper motor, Nema 8, Step Angle: 1.8°, Frame: 20*20mm motor. It is the smallest two-phase stepper motor on the market, high torque, high-speed response, small size, light weight, low carbon and environmental protection, products have passed quality environmental certification, CE, ISO, and ROHS certification.

The 42BYGHAG-E Geared Stepper Motor is integrated with a flange 42mm reducer and a stepper motor, which greatly saves installation space. The reduction ratios are 3. 6, 7. 2, 9, 10, 18, 36, 50, 100, corresponding Step angle 0. 5 to 0. 018, high positioning accuracy and output torque.

DQ542MA Hybrid Stepper Motor Driver adopts average current control, two-phase sinusoidal output current drive, high starting speed, high performance and low price. We are also equipped with low voltage protection functions and customized services.

The quiescent current of the 24-80V Stepper Motor Driver can be set with the SW4 DIP switch. OFF means that the quiescent current is set to half of the dynamic current, and ON means that the quiescent current is the same as the dynamic current. In general use, SW4 should be set to ON, which can reduce the heating of the motor and driver and improve reliability. About 400ms after the pulse train stops, the left and right currents are automatically reduced to about half (60% of the actual value), and the calorific value is theoretically reduced to 30%.

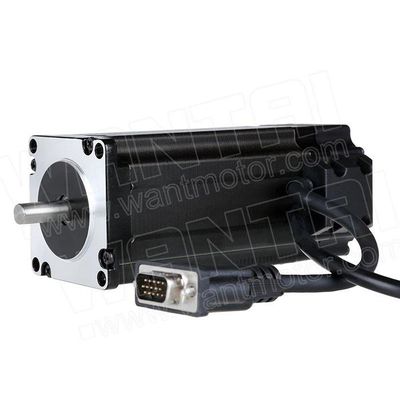

57HBM Closed Loop Stepper Motor is a combination of stepper motor and closed-loop control. Because the open-loop control system of stepper motor has disadvantages such as low precision and lost steps, the closed-loop control system of stepper motor can be used in occasions with higher precision requirements. This control method is to directly or indirectly detect the position or speed of the transfer (or load), and then through feedback and appropriate processing, the drive pulse sequence of the stepper motor is automatically given. This drive pulse sequence is based on the load. Or the position of the rotor changes at any time. There are many realization methods of this control method. In the occasions that require high precision, the combination of micro-step drive technology and microcomputer control technology can achieve high position accuracy requirements.

42HBM Closed Loop Stepper Motor is a low-heat and high-efficiency stepper motor. It has high torque and high speed. It is simpler and more convenient to use, and it runs very stable. This series complies with RoHS, ISO and CE certification standards, and the product quality is well recognized by customers.

86HBM Closed Loop Stepper Motor is equipped with a 1000-line incremental photoelectric encoder, which has high precision, low motor heat generation, low noise and high efficiency. The motor stops at high speed and is stable and fast, without zero-speed oscillation, runs smoothly, and has a fast response speed, suitable for frequent Start and stop occasions.

SS570 Servo Driver is a driver with high positioning accuracy without losing step. The driver has low vibration, stable and reliable low-speed operation, internal acceleration and deceleration control, which greatly improves the smoothness of the motor starting or stopping, and is also equipped with overcurrent, Over-voltage and over-position error protection.

SS880 Servo Driver is made of a new 32-bit motor control DSP chip, with advanced vector closed-loop control technology, static current and dynamic current can be set arbitrarily, and the pulse response frequency is up to 200KHz. We can also provide you with free technical guidance and customized services.
