Advantages of using Q-PAC for scrubber upgrades: Lower Pressure Drop, Increased Air Flow, Fouling & Plugging Resistant. For original equipment: Smaller Tower Diameters, Smaller Recirculation Pumps, Smaller Mist Eliminators, Reduced Packing Volume, Lower Cost.

Your clients will think you’re magic when you specify LANPAC® tower packing for their scrubber, stripper, cooling tower, or absorption projects.  That’s because LANPAC® achieves the impossible: significantly lower pressure drop and higher mass transfer efficiencies than other smaller packings.

High efficiency mass-transfer media combines extremely low pressure drop with excellent plugging resistance!

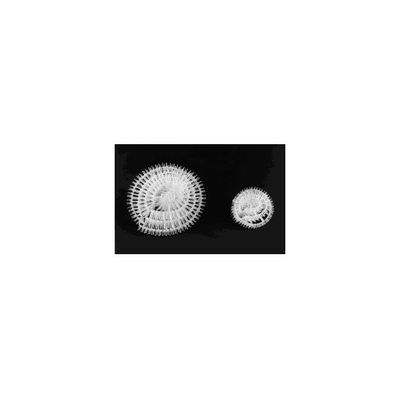

With considerably more surface area per cubic foot than any other random packing of equivalent size, NUPAC® is ideal for mass/ heat transfer applications that require the absolute highest quality engineered surface. NUPAC® allows for the lushest and most uniform biological growth possible on a plastic media.

You really won’t believe what HD Q-PAC® will do for your biotrickling filter. Eliminate the need for chemicals in odor-control scrubbers, or improve oil removal efficiency in compact oil-water separators.

Segmented Honeycomb™ ceramic media from Lantec Products are an equivalent replacement for conventional honeycomb (“monolith”) media used in regenerative thermal oxidizers. While segmented and conventional honeycombs operate with equivalent heat-transfer and pressure drop characteristics, the innovative design of Segmented Honeycomb™ offers several key performance advantages.

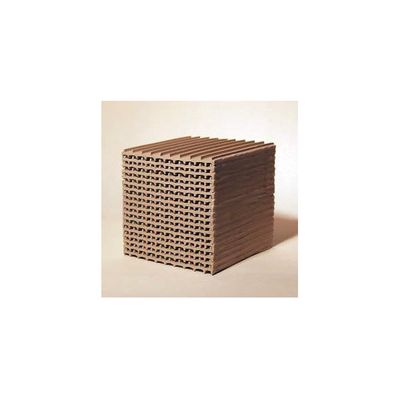

MLM® from Lantec Products is the most efficient heat-recovery media for regenerative thermal oxidizers (RTOs). It comes in three configurations, with 160 ft2, 180 ft2, or 200 ft2 of heat-transfer surface per cubic foot. MLM®‘s parallel-plate structure packs more ceramic material into each cubic foot-up to 80% more than saddles-with less resistance to air flow. The result is a unique combination of high heat capacity, rapid heat transfer, low pressure drop, and great resistance to plugging by particulates. When 1” saddles are replaced with MLM®-200, bed depths can be reduced by more than 50%.

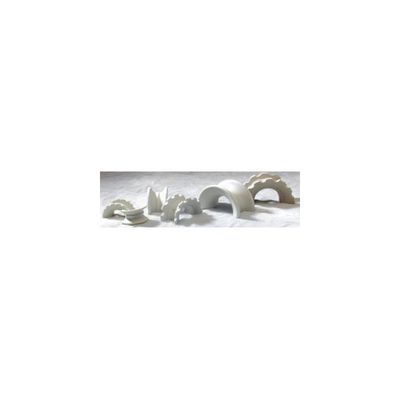

Lantec Advantages: Low Purchase Cost. Lower Pressure Drop. High Thermal Stress Resistance. Meets all ASTM Standards. ASTM C515 Chemical Porcelain. ASTM C373 Water absorption

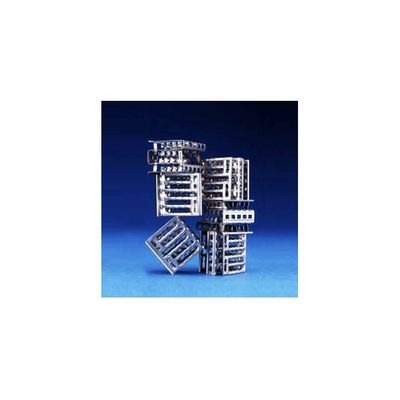

Metal Q-PAC offers 20-25% better gas-liquid contacting efficiency than imtp-40, with lower pressure drop. Random packings such as modified saddles or rings with perforations and tabs force tower designers to sacrifice either mass-transfer efficiency or pressure drop. Until now, structured packings, with their controlled arrangement of surface area, drip points, and gas/liquid flow paths have provided the best packing tower performance. However, structured packings are expensive, difficult to install & maintain, and unsuitable for use at higher liquid loadings.
