Larson Davis, a division of PCB Piezotronics software

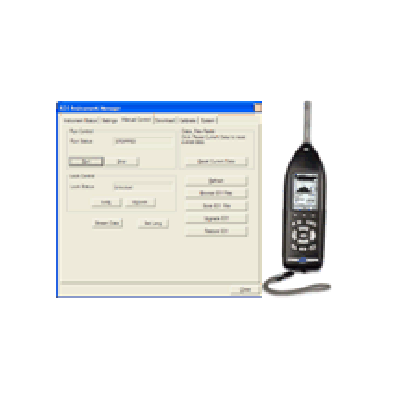

The SLM Utility Software Programs interface the Larson Davis Sound Level Meters Model types 720; 812; 820; SoundTrack LxT; 831 and System 824 with a PC and Printer. This enables the instruments to be controlled  from the PC, providing the facility of a large color screen to assist data measurement, instrument control and measurement interpretation. The instruments can be `setup` from the PC via an Upload routine or `setup` data can be transferred from the instruments to the PC via a Download routine. Measurement data from the instruments can be translated and used to create reports on the PC which can be exported in the form of Spreadsheets. Data bases can be created and upgraded as required.

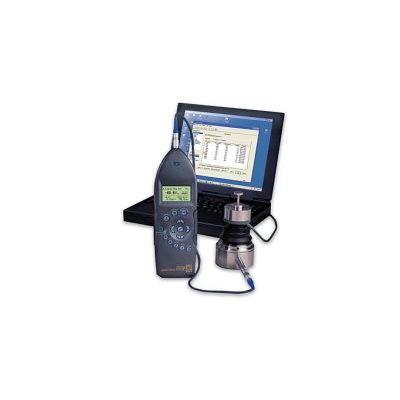

A comprehensive line of couplers, systems and software! Larson Davis audiometer calibration systems combine the speed and power of the System 824 real time analyzer with the sophisticated, yet user-friendly, AUDit software. Standard audiometer specification tests can be performed manually or under computer control with greater ease than with any other system. To interface with the large variety of audiometer transducers, the Larson Davis family of couplers includes NBS 9-A and IEC 318 couplers as well as an extremely practical artificial mastoid. Finally, there is a rugged, portable solution for in-house or in-field audiometer calibration which sacrifices none of the accuracy and stability of laboratory instrumentation.

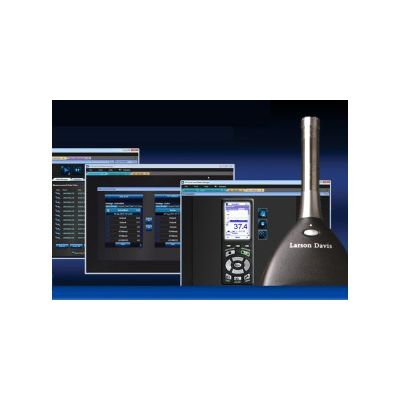

The G4 LD Utility is a free program for use with your Models SoundAdvisor™ 831C, 831, or LxT sound level meters as well as Model HVM200 human vibration meters, and Spartan™ Model 730 and Model 730IS noise dosimeters. Connect, control, download, and view data from multiple devices simultaneously. Organize files and meters by project. View your data graphically and in spreadsheet format, generate reports, and easily export in Excel^® format for further data analysis. Examine graphs of multiple parameters and heat maps of octave band data. If your meter supports sound recording, play synchronized audio and edit data directly from the graph.

LD Atlas^TM is a free mobile app for use with your new Larson Davis equipment. Install LD Atlas on your phone or tablet – available for both iOS and Android – and connect to your Spartan^TM Noise Dosimeter Model 730, SoundAdvisor^TM Sound Level Meter Model 831C, and Human Vibration Meter Model HVM200. Connect to your meter and use LD Atlas to easily check on the status of your meter, make setup changes for a new measurement, analyze data, listen to recorded audio files, and even create and share PDF reports with your own company logo on them.

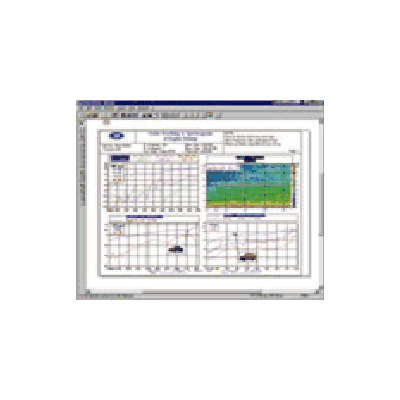

Analyzing noise and vibration data can be difficult. Its not often easy to see the patterns or recognize the nuances of complex data sets. Furthermore, presenting data in a way that is meaningful can be challenging, yet perhaps our most important task.

Tools for customizing and integrating our Sound Level Meters into your application. The Software Development Kit for the Model 831 and LxT Sound Level Meters interfaces smoothly and directly with Microsoft® or Linux® programming environments supporting Visual C++®, Visual C#®, HTML 5 and Javascript® programming languages. The SDK provides functionality to establish connection and fully control the Model 831 and LxT Sound Level meters over USB, network or modem connections. File downloads are supported and the SDK includes documentation and software for extracting data from files. Because of a reliance upon JSON, the SDK makes it easy to create modern, web based applications with minimal effort.

Blaze® software is the ideal data analysis and reporting tool for Industrial Hygiene and Safety professionals. From simple, concise compliance reports to powerful detailed data presentations, Blaze excels in supporting the Spark® family of personal Noise Dosimeters and the HVM100 Human Vibration Meter.

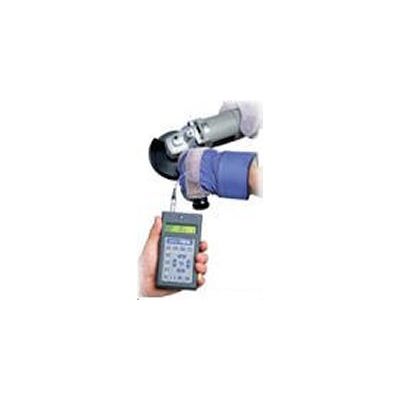

The HVManager software can perform the following three activities. Download Instrument: Download data previously measured and saved in the HVM100 memory to the PC. Work with Hand/Arm Vibration Data: Create data bases, select records, view data, calculate exposure and create product test data sheets for hand/arm vibration data. Work with Whole Body Vibration Data: Create data bases, select records, view data, calculate exposure and create product test data sheets for whole-body vibration data.
