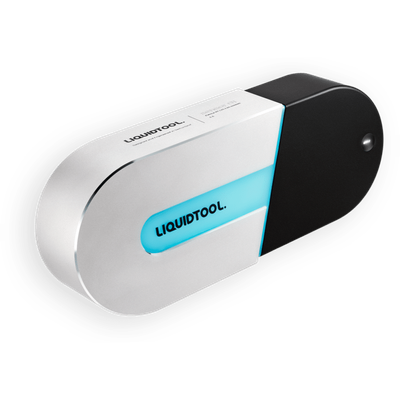

The Liquidtool Sensor 01 is a critical component in Liquidtool's suite of monitoring solutions, designed for automatic and regular measurement of coolant concentration and temperature in metalworking operations. It integrates seamlessly with the Liquidtool Manager for real-time data analysis. The device supports the AutoPilot solution or can function independently as part of the Liquidtool Instructor package. Offering a plug-and-play installation with magnetic mounting, the sensor requires minimal maintenance due to its self-cleaning refractometer feature. With over-the-air updates, it remains current without manual interventions. It includes an NFC token for easy data access, hoses for fluid intake and outlet, and various digital and serial port options. The sensor is equipped with IP44-rated enclosure and supports operation within a wide environmental range. The setup necessitates a smartphone or tablet for registration and a functional internet connection for data transmission.

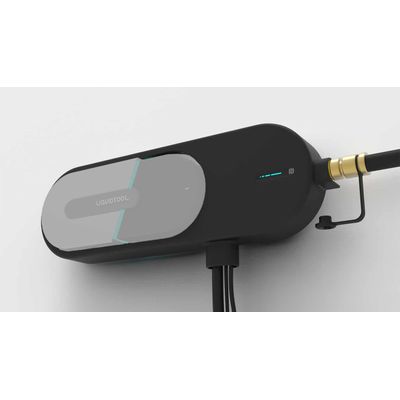

The Liquidtool Extender is an integral component of the Liquidtool AutoPilot solutions, designed for precise and automatic monitoring of coolant sump levels. It functions by collecting real-time fill level data through a combination of differential pressure and ultrasonic sensors, effectively measuring even challenging conditions such as foam presence. This data feeds into the Liquidtool Manager for immediate analysis. The system is enhanced by its interplay with the Liquidtool Sensor 01 and SmartFiller, ensuring accurate top-up of the coolant, preventing overflow, and maintaining optimal concentration. Notably, the Extender incorporates plug-and-play installation, magnetic mounting, and individualized valve controls for precise top-up across multiple sumps. Its design focuses on operational efficiency with features like a submerged base element carrying intake filters and differential pressure tubes, making it suitable for diverse tank configurations. The Extender operates within a wide temperature range and includes necessary hoses, sensors, and power supplies, adhering to IP44 enclosure standards.

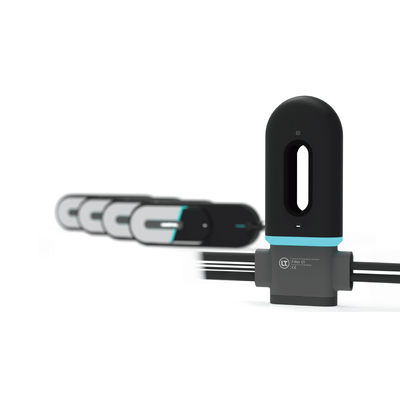

The Liquidtool SmartFiller is an advanced automated system designed to efficiently mix and manage coolant concentrations within industrial settings. This device is part of the Liquidtool AutoPilot solutions and is designed to fit on top of coolant drums or IBCs, where it connects seamlessly to a water supply. Utilizing a magnetic mount for easy installation, it automates the entire process of mixing the correct coolant concentration and topping up each connected sump in real time. The system employs volumetric dosing, ensuring stable output concentration and accuracy, unlike the Venturi principle. Equipped with a differential pressure sensor, the SmartFiller accurately monitors the coolant level, providing timely notifications for container replacement. It offers compatibility with RJ45, Bluetooth, and WLAN for digital connectivity, facilitating the integration of its data into the Liquidtool Manager. Operating under IP44 conditions, this device sets a new standard in coolant management efficiency and effectiveness.

The Liquidtool AutoPilot Single is an automated coolant management system designed to optimize metalworking fluid conditions. It integrates advanced technologies to measure and maintain optimal coolant concentration, filling levels, and temperatures in your coolant sumps. The system operates autonomously, requiring no additional piping and only standard hoses, making installation straightforward. The device includes key components like the Liquidtool Manager, an online platform for data analytics and monitoring; the Liquidtool Sensor 01, which provides precise readings of coolant concentration and temperature; the Liquidtool Extender, ensuring accurate filling level readings using hydrostatic and ultrasonic sensors; and the Liquidtool SmartFiller, which automatically regulates the tank's coolant levels to maintain appropriate balance. This modular system offers scalability and adaptability, allowing seamless integration with existing setups and expansion capabilities for centralized automation.
