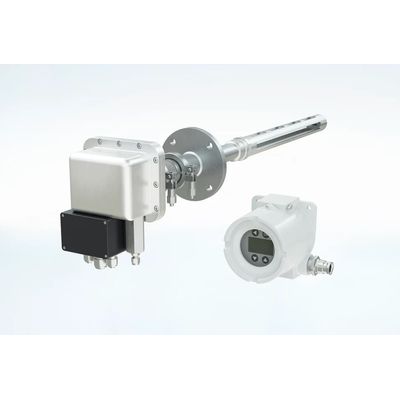

The ILA1-X000-EX In-situ Laser Analyzer measures oxygen (O2) or sulfur dioxide (SO2) in real time and is designed for industrial applications as well as for use in potentially explosive atmospheres. The analyzer requires just a single process flange for operation. The ILA1-X000-EX In-situ Laser Analyzer is an in-house M&C development and consists of a sensor head with a transmitter and a receiver as well as a probe tube with mounting flange and reflector. A separate HMI unit is available as an option.

Gas sample probe with filter housing and mounting flange made of stainless steel. With ceramic filter element, other filter materials are optional. Adaption to nearly all process conditions due to its compact and modular design. Easy installation and low maintenance. Low dead volume. Material of sample-contacting parts: stainless steel, FKM, Novapress®, ceramic. Basic version with a large variety of available options.

Gas sample probe type SP2000‑H with external ceramic filter type S‑2K150, filter porosity: 2 µm, with electrically heated external filter 0 to 180 °C, adjustable by an integrated thermostat, high‑temperature limiter with reset key responding at +30 °C Tset and low‑temperature alarm with potential‑free status‑alarm contact at ‑30 °C below Tset, incl. weather protection shield with insulation, power: 230 V/50 Hz, 800 W, mounting flange: DN 65 PN 6B with G 3/4" f connection, sample gas OUT: 1/4" NPT f, material: SS 316Ti, ceramic, Viton®.

The electrically heated, plug-in M&C sample lines series 3-N/M/H EX are used in gas analysis systems to avoid a distortion of measuring values and they also serve as anti-freeze protection during the transport of sample gas from the sample point to the gas conditioning system or directly to the heated analyzer (above dew point).

The electrically heated, plug-in M&C sample lines series 3-N/M/H EX are used in gas analysis systems to avoid a distortion of measuring values and they also serve as anti-freeze protection during the transport of sample gas from the sample point to the gas conditioning system or directly to the heated analyzer (above dew point).

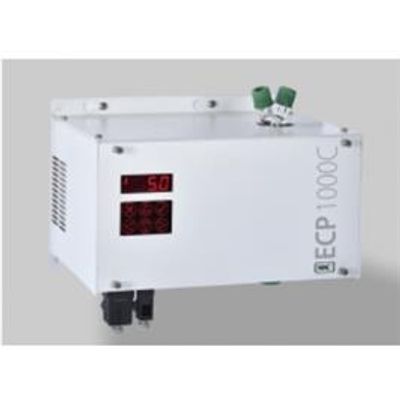

Electric gas cooler type ECP1000C with display and capacitive control panel, for ambient temperatures up to +50 °C, with Peltier element, electronically controlled from +2 to +15 °C (preset to +5 °C), adjustable high/low temperature alarm with 1 potential-free relay contact, integrated LA evaluation, without heat exchanger, power: 115 to 230 V AC/50 to 60 Hz pluggable. One stream, max. flow 150 Nl/hr, different materials of heat exchangers, power 115-230 V AC/50-60 Hz.

Electric gas cooler type ECP1000-G with Peltier element, electronically controlled to +5 °C, high/low temperature alarm with 2 changeover contacts, jet-stream heat exchanger made of Duran glass for 1 x 150 Nl/h, connections: sample gas: GL18-6 mm, condensate: GL 25-12 mm, power: 230 V/50 Hz or 115 V/60 Hz to switch over. One stream, max. flow 150 Nl/hr, different materials of heat exchangers, power 115/230V 60/50Hz.

Gas sample probe type SP2000 with external ceramic filter type S-2K150, filter porosity: 2 µm, filter element seal and cover seal out of Viton, mounting flange: DN 65 PN 6B with G 3/4" f connection, material: SS 316Ti, Viton, ceramic.

Gas sample probe type SP2000-H with external ceramic filter type S-2K150, filter porosity: 2 µm, with electrically heated external filter 0 to 180 °C, adjustable by an integrated thermostat, high-temperature limiter with reset key responding at +30 °C Tset and low-temperature alarm with potential-free status-alarm contact at -30 °C below Tset, incl. weather protection shield with insulation, power: 230 V/50 Hz, 800 W, mounting flange: DN 65 PN 6B with G 3/4" f connection, sample gas OUT: 1/4" NPT f, material: SS 316Ti, ceramic, Viton.

Sample tube for PSP4000 type PSP4000/SS, incl. male G 3/8" connector and sealing, length: 1 m, 10 mm o.d., material: SS 316Ti, max. 600 °C.
