Sample Gas Dilution Technique/ Dilution Probe

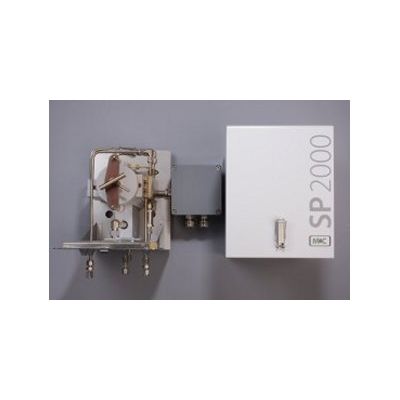

Model SP2000-H/DIL 230V - Dilution Probe
Gas sample dilution probe type SP2000-H/DIL. With external ceramic filter type S-2K150, filter porosity: 2µm, with electrically heated external filter 0-180°C adjustable by an incorporated thermostat, over temperature limiter with reset key at +30°C Tsetting and low temp. alarm with potential free status-alarm contact at -30°C below Tsetting. Incl. weather protection shield with insulation. Power: 230V/50Hz, 800W. mounting flange: DN65PN6B with thread G3/4`i. Sample gas OUT: tube 8mm. Material: SS316, ceramic, Viton. # Dilution ratio to be indicated with the order. Heated to 0-180°C, power 230V/50Hz or 115V/60Hz
