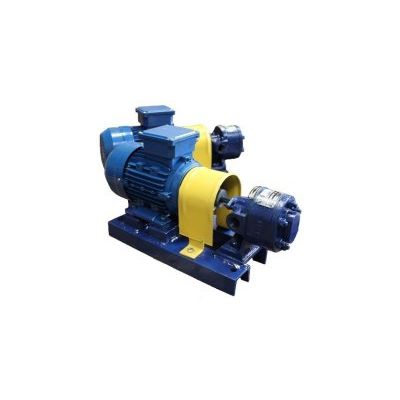

Mecanex - Model DL | DLT -Volumetric Pumps with Gear Wheels

SHARE

Volume pumps with caged wheels. Both suction and discharge holes are set in horizontal plane. Slide bearings. Greasing by circulated Liquid. Provided with stuffing box.

Most popular related searches

Mechanical sealing
Various protection classes of the electric motor: IP44; Exd II Ct4
60 Hz frequency
Various voltage ratings: 380V; 415V; 500V
Various driving systems available
Various classes of insulation: E; F

Chemical industry
Food industry
Energetic industry
Greasing non-aggressive liquids without impurities

Flow 7,5-565 l/min
Pressure 2-16 bar
Temperature max 80 0C
Nom. Pressure DL1...DL8: 16 bar
DL9...DL11: 10 bar
DL12: 8 bar
DN Suction G3/4 “…G13/4” and 65 mm
DN refulare G3/4”...G13/4” and 65 mm
