Mega Concrete Plants products

The system takes gravel, sand, cement, water, and additives, which are necessary for ready-mix concrete, from specially designed stock hoppers. These raw materials are taken in predetermined and computer-programmed proportions and mixed in the mixer to produce ready-mix concrete. The mixing capacity of the mixer is 30 m³ per hour. By adding an additional intermediate storage hopper for uninterrupted raw material feeding, the capacity can be increased up to 38 m³. Our concrete plant is designed to operate continuously for 24 hours as long as an adequate supply of raw materials is available.

The system takes gravel, sand, cement, water, and additives, which are necessary for ready-mix concrete, from specially designed stock hoppers. These raw materials are taken in predetermined and computer-programmed proportions and mixed in the mixer to produce ready-mix concrete. The mixing capacity of the mixer is 30 m³ per hour. By adding an additional intermediate storage hopper for uninterrupted raw material feeding, the capacity can be increased up to 38 m³. Our concrete plant is designed to operate continuously for 24 hours as long as an adequate supply of raw materials is available.

The system takes gravel, sand, cement, water, and additives, which are necessary for ready-mix concrete, from specially designed stock hoppers. These raw materials are taken in predetermined and computer-programmed proportions and mixed in the mixer to produce ready-mix concrete. The mixing capacity of the mixer is 60 m³ per hour. By adding an additional intermediate storage hopper for uninterrupted raw material feeding, the capacity can be increased up to 72 m³. Our concrete plant is designed to operate continuously for 24 hours as long as an adequate supply of raw materials is available.

The system takes gravel, sand, cement, water, and additives, which are necessary for ready-mix concrete, from specially designed stock hoppers. These raw materials are taken in predetermined and computer-programmed proportions and mixed in the mixer to produce ready-mix concrete. The mixing capacity of the mixer is 90 m³ per hour. By adding an additional intermediate storage hopper for uninterrupted raw material feeding, the capacity can be increased up to 102 m³. Our concrete plant is designed to operate continuously for 24 hours as long as an adequate supply of raw materials is available.

The system takes gravel, sand, cement, water, and additives, which are necessary for ready-mix concrete, from specially designed stock hoppers. These raw materials are taken in predetermined and computer-programmed proportions and mixed in the mixer to produce ready-mix concrete. The mixing capacity of the mixer is 120 m³ per hour. By adding an additional intermediate storage hopper for uninterrupted raw material feeding, the capacity can be increased up to 135 m³. Our concrete plant is designed to operate continuously for 24 hours as long as an adequate supply of raw materials is available.

There are two types of silos:bolted cement siloandwelded cement silo. The bolted model is mostly preferred as it provides more advantages during transportation. Cement silos with only inlet and outlet pipes are defined as the base model. In base model silos, equipment such as filters and safety valves are optionally added. Silo production in different capacities and sizes according to your request is made by our company.

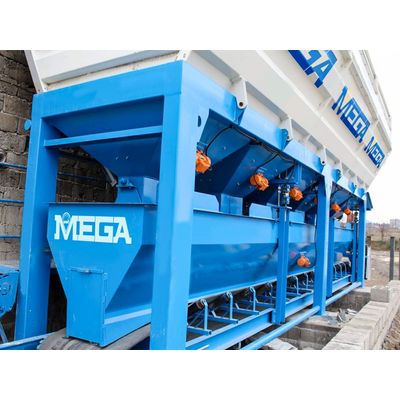

It is the area where raw materials such as sand, gravel, aggregate are stocked in ready mixed concrete production. There is a weighing band at the bottom. As Mega Concrete Batching Plants, we manufacture the bunkers in accordance with ISO 9001 quality and all DIN norms, in the desired dimensions, in such a way that they can weigh sensitively. The material of the hoppers is made of twisted sheet metal, the side covers are hinged and each chamber has the features of a vibro motor. The hopper covers are under automation control and are pneumatically impulsion. You can increase your capacity at any time with its extra caps. In addition, with our special bunker design, we save you a lot of shipping costs. With our 24/7 customer support service, we produce instant solution-oriented results against the problems that may occur. Our bunkers are warrantied for 3 years.

It is the belt that allows the materials in the aggregate bunker to be weighed at the desired weight and transfers them to the aggregate transfer belt after the weighing process is completed. It is located just below the aggregate hopper. It consists of 5 separate components: weighing chamber, chassis, conveyor rubber and rollers, weighing system, motor reducer group. Aggreagate Transfer Belt: It is the equipment that transfers the dosed raw material coming from the electronic weighing belt to the waiting bunker. The bottom of the bunker is positioned at the end of the weighing belt.

Cement screw conveyorsare the equipment that carries the cement to be used for the mortar from the silo to the weighing system. According to your request, production is made by our company in various capacities and sizes. The place where the helix is connected to the cement silo is mobile and has the ability to rotate 360 degrees easily. Made of durable materials. It does not require extra maintenance. In addition to superior manufacturing technology, long life and trouble-free operation have been achieved thanks to increased helix and pipe thicknesses. Different electric motor options and high efficiency, silent gearbox units are used. For all inlet and outlet options, clapper connection flanges are available upon request.

We use 3 different mixers in our facilities. PAN Type Mixer, PLANETARY Type Mixer, TWIN SHAFT Mixer. Mixers are the most critical and most important point of the concrete production work in terms of ensuring the mixing process in the shortest time and maximum homogeneity. In our mixers, mixing is provided in a minimum time, at low water-cement ratios and in such a way that all of the cement can come into contact with the aggregate. This is one of the important factors that increase the efficiency of the system. Our Twin Shaft Mixers perform automatic washing and lubrication. In addition, our Pan and Planet mixers have 3 different outputs. Thus, you can use the mortars you have prepared for both your truck mixer and your parquet-briquette machine. Our mixers are guaranteed for 3 years, and our Twin Shaft Mixers also have a 1-year wear plate warranty.
