Moorfield Nanotechnology Limited products

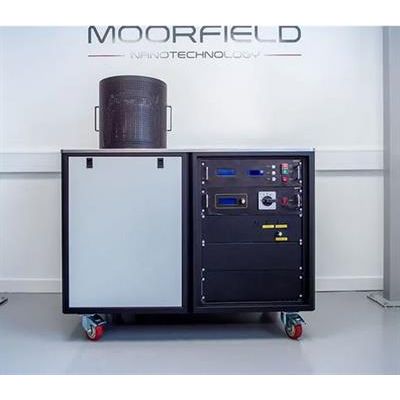

MiniLab 026 systems are compact floor standing vacuum evaporators with easy-access ‘clam-shell’ chambers. Suitable for metal, dielectric and organics deposition via evaporation and sputtering techniques.

The most popular platform in our MiniLab range, MiniLab 060 systems have front-loading box-type chambers ideal for multiple-source magnetron sputtering but also thermal and e-beam evaporation.

MiniLab 080 systems offer tall chambers ideally suited for thermal, LTE and e-beam evaporation techniques requiring longer working distances for optimum uniformity.

MiniLab 090 systems are glovebox-compatible for atmosphere-sensitive applications. Tall chambers are ideal for high-performance evaporation, but magnetron sputtering is also available.

Glovebox Annealing Integrated MiniLab systems with annealing hardware for substrate heating under controlled conditions, and transfer to/from inert atmospheres.

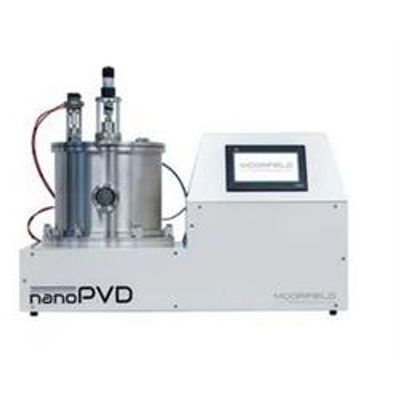

A benchtop, RF and DC magnetron sputtering system for metals and insulating materials. Compact as an electron microscopy coater, but with high-end hardware for research-grade results.

Budget-friendly, entry-level thermal evaporation system. The modern equivalent of the Edwards E306.

Moorfield have been working with the Edwards E306 system for more than 2 decades. We have highly experienced engineers who can refurbish, re-engineer and service your unit. We can also provide commonly-used spare parts. We can work with most system configurations, including units set up for thermal or e-beam evaporation, and magnetron sputtering.

A benchtop graphene CVD system for rapid, on-demand synthesis of high-quality graphene. Fully automated cold-wall technology for reduced contamination and running costs, and enhanced conditions control.

High-temperature vacuum annealing for planar substrates, up to 1000 °C, with precision gas and pressure control—all in a benchtop package.
