Munson Machinery Company, Inc. products

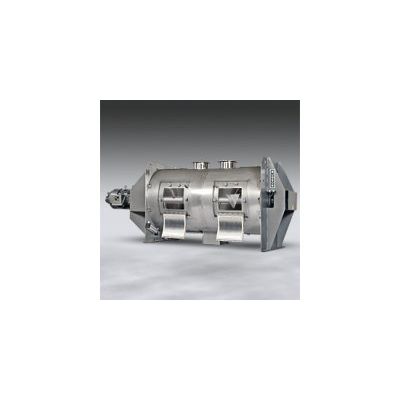

Munson has been manufacturing high performance ribbon blenders, paddle blenders and plow blenders since 1960, and has most likely solved a horizontal blending problem precisely like yours numerous times. From sanitary blenders for labs, nutraceuticals, pharmaceuticals and food producers to robust, super-duty machines for soil reclamation, building materials and oil sludge treatment, Munson tailors each horizontal blender to satisfy specific application requirements.

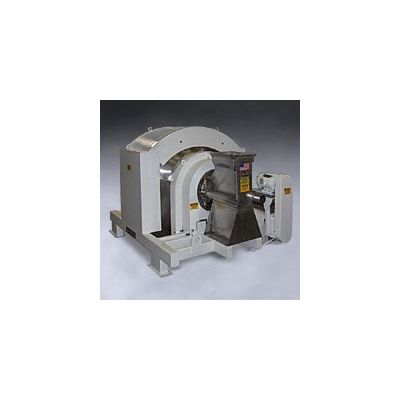

The Munson Rotary Batch Mixer offers 100 percent uniform particle distribution, 100 percent uniform liquid coatings, the fastest cycle times, gentle product handling, the lowest energy consumption per pound of blended product per hour, and complete discharge with no segregation of blended products.

A Munson Vee-Cone Blender is comprised of two inclined cylinders that rotate, causing bulk material to fall and converge during half of the rotation, and divide during the other half. This achieves uniform blends more rapidly than standard Double Cone Blenders (also offered by Munson), while requiring significantly less horsepower/kilowatts than ribbon blenders and other agitated machines.

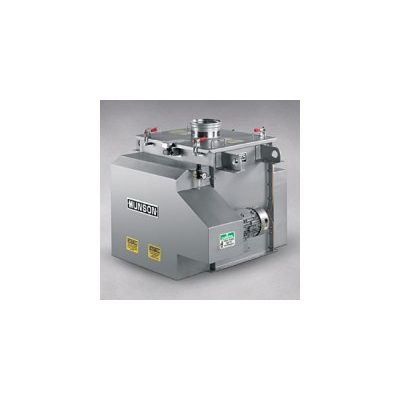

Munson Fluidized Bed Mixer MF-5-SS mixes low-to medium-density bulk materials, including liquid additions, in 10 seconds to two minutes, with 30 seconds typical, minimizing degradation of friable materials. The Munson Fluidized Bed Mixer is a machine of extremes, offering unique benefits within a narrow range of applications in which its limitations are not a factor.

Munson Rotary Batch Equipment is highly effective for drying, cooling or moisturizing of bulk solid materials, independent of or in combination with, blending operations.

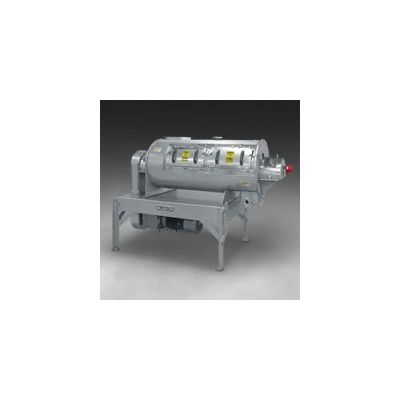

For batch blending of extremely fibrous, interlocking, dense, abrasive or moist/oily materials at higher speeds, with higher intensity, and with more uniform results than possible with trough style Ribbon, Paddle or Plow Blenders. Unlike trough-style Ribbon, Paddle and Plow Blenders, Munson Cylindrical Plow Blenders consist of a cylindrical vessel and a mixing shaft that rotates about 4-times faster. The vessel is typically filled to 60 percent of capacity that, together with fast rotation of the mixing shaft, serves to fluidize the material and fill the entire mixing vessel with airborne material, maximizing material transfer rates while minimizing impact and degradation.

The Munson High Intensity Continuous Blender provides the added shear needed for high speed blending, homogenizing and/or de-agglomerating of dry ingredients, slurries and pastes. The blender can also be equipped with spray ports for large additions of liquids, which can also serve to dedust and/or agglomerate dry materials. It is a fast, high capacity machine that operates on small working volumes with minimum residence times of 5 to 30 seconds.
