Oxymat A/S products

At Oxymat, we use two columns with molecular sieves to ensure continuous production. Dry compressed air is blown through a valve to the vessel where the pressure is built to reach 5 to 7 bar(g). Nitrogen is tied to a molecular sieve during the building of pressure, and the oxygen is allowed to pass through to the accumulation tank. While pressure is build in one vessel, the second remains without pressure. A part of the produced gas is used for regeneration of the molecular sieve. For Oxygen, Zeolite type 13X is used. The molecular sieve is fully regenerative and has a life span on to 40.000 operation hours.

At Oxymat, we use two columns with molecular sieves to ensure continuous production. Dry compressed air is blown through a valve to the vessel where the pressure is built to reach 5 to 7 bar(g). Oxygen is tied to a molecular sieve during the building of pressure, and the nitrogen is allowed to pass through to the accumulation tank. While pressure is build in one vessel, the second remains without pressure. A part of the produced gas is used for regeneration of the molecular sieve. For Nitrogen a Carbon Molecular Sieve (CMS) is used. The molecular sieve is fully regenerative and has a life span on to 40.000 operation hours.

Our Supply Vessel Inert Gas Generator is designed specifically for Offshore and Platform Supply Vessels. For many years, we have supplied nitrogen generators based on PSA technology for tankers transporting oil, chemicals and gas and the SVIGG design is a highly compact and flexible system. Typically, nitrogen generators are composed by a plant dimensioned so it can generate directly from generator to consumption in the cargo hold – now the concept has been changed a bit. As Supply Vessels typically transport smaller volume cargos, which require less volume of nitrogen to safeguard against explosions and fire-hazards, the standard nitrogen generators are often relatively big compared to the requirements. By introducing a high pressure booster and a fully automated bottle station the resulting product is much more appropriate to the needs and purposes.

Oxymat Tonnage Units – Uniquely Designed Xseries with small footprint and low energy consumption. The framed design secures quick installation and start-up offers a low CAPEX compared to cryogenic ASU.

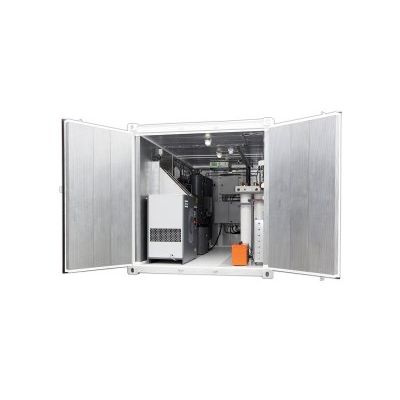

The need for oxygen and/or nitrogen is everywhere – even in the most re­mote places. Oxymat has specialized in designing Portable Containerized Generator Units that will ensure your safe and independent source of nitrogen and/or oxygen, when you need and – literally, where you need it.

Oxymat Purifier Action System (OPAS) is the Add-on technology, making the most of any Nitrogen generator. OPAS is the true Add-On technology for Nitrogen application requiring 1-100 ppm. OPAS can easily be integrated with already existing Nitrogen generation systems resulting in high purity Nitrogen at minimum costs.
