PCF Elettronica S.r.l. products

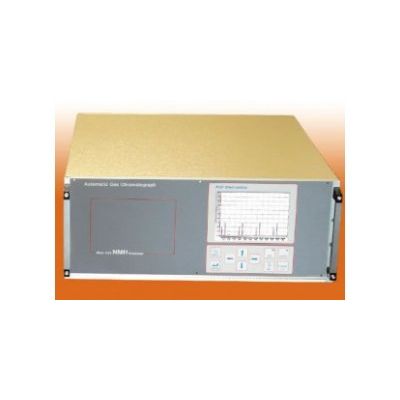

Mod. 529 NMH, Non Methane Hydrocarbon automatic analyzer, Gas chromatographic separation of Methane Fraction from the Total Hydrocarbons.For continuous environmental monitoring.It Measures the reactive hydrocarbons.Gas chromatographic separation of Methane Fraction from the Total Hydrocarbons . .

Continuous monitoring of Benzene, Toluene, Ethyl-Benzene and Xylenes.Gas chromatographic (capillary column) separation of the aromatic compounds.For automatic and continuous environmental monitoring.It Measures Benzene (Butadiene), Toluene, Ethyl-Benzene (Styrene) and Xylenes.Gas chromatographic (capillary column) separation of aromatic Hydrocarbons .

We have the technical capabilities and we already did in our past equipment integration in Automatic Air Quality Monitoring Stations (A.A.Q.M.S.)

For continuous source and/or environment monitoring, including discrete sampling. The detector is an heated carbon atom counter. Sample is introduced into a micro flame lighted by hydrogen and air (1:10 ratio), where the electrical charges generated by the oxidation of Cx to CO are proportional to the hydrocarbon content in the sample. Actual car-bon concentration is computed out of calibra-tion employing a traceable reference gas mix-ture. The electrical charges are collected by two polarised electrodes and converted by an electrical circuit into an electronic signal.

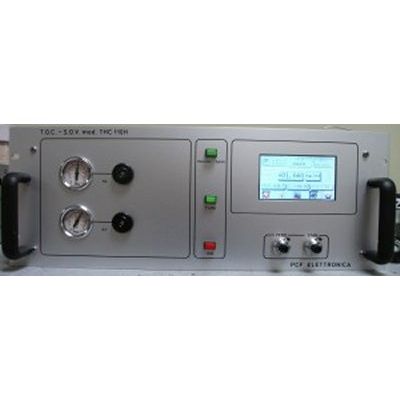

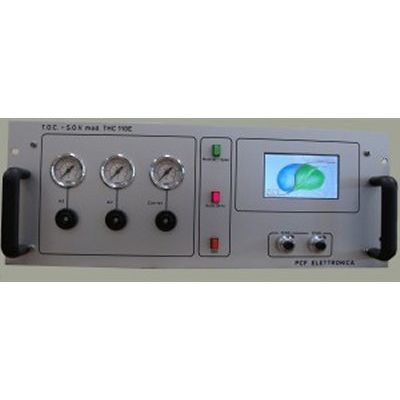

Mod. 110H, stationary hot F.I.D. (Flame Ionization Detector) VOC monitor. Meets UNI EN 13526 and UNI EN 12619 requirements and specifications. Fast response monitor for continuous source monitoring.

Special versions of the base Mod. 529 allow to meet the specific requirements of monitoring and control. The specific analysis of the chemical components increase the efficiency of industrial plant and avoids undesired pollution conditions. Gas chromatographic separation of Benzene fraction from the Total Hydrocarbons with direct measurement. For stack and environment continuous monitoring. It specifically measures the Benzene concentration. Gas chromatographic separation of Benzene fraction from the Total Hydrocarbons with direct measurement.

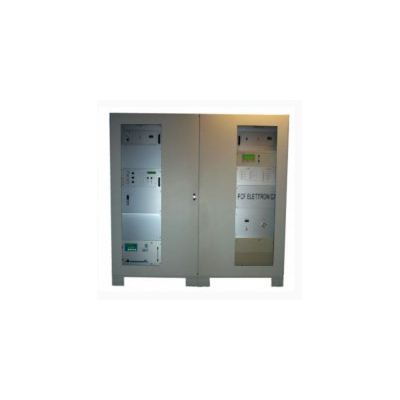

Modular turnkey automatic industrial systems for sampling, conditioning and monitoring industrial stack/ducts. All the integrated analyzers are EPA and TUV certified.

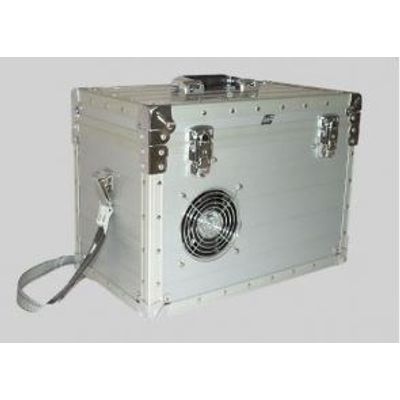

Mod. 2005, portable hot F.I.D. (Flame Ionization Detector) VOC monitor. Meets the UNI EN 13526 and the UNI EN 12619 directives and specifications. For continuous source and environment monitoring.

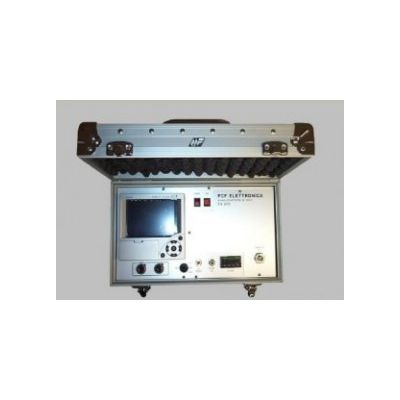

Mod. 2001/C, portable hot F.I.D. (Flame Ionization Detector) VOC monitor with manual separation of Methane fraction. Meets the UNI EN 13526 and the UNI EN 12619 directives and specifications. For continuous source and environment monitoring.
