ProMinent GmbH

4 products found

ProMinent GmbH Products

  • Process Metering Pumps - Diaphragm Metering Pumps

    Hermetically sealed metering units and resistant materials allow ProMinent diaphragm process metering pumps to convey aggressive media with ease. But that's not all. Maintenance-free and fault-free operation also depends on the quality of the diaphragm, which is why ProMinent always ensures that its products are equipped with extremely durable diaphragms.

  • ProMinent - Model Makro/ 5 - Diaphragm Metering Pump

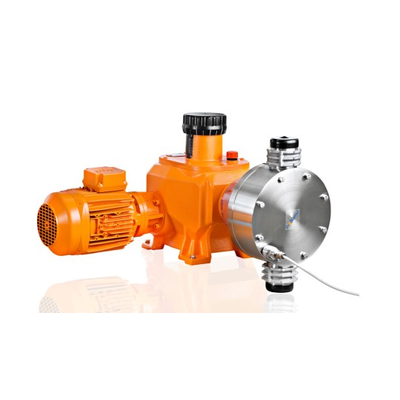

    ProMinent - Model Makro/ 5 - Diaphragm Metering Pump

    Capacity range of single pump: 1,540 – 4,000 l/h, 4 bar; The diaphragm metering pump Makro/ 5 is used to meter reactants and catalysts in the chemical industry. Thanks to its modular construction, it can adapt outstandingly to the actual requirements of each application.

  • ProMinent - Model Makro TZ - Diaphragm Metering Pump

    ProMinent - Model Makro TZ - Diaphragm Metering Pump

    Capacity range of single pump: 260 – 2,100 l/h, 12 – 4 bar. The modular construction of the diaphragm metering pump Makro TZ with adjustable eccentric drive mechanism and mechanically deflected multi-layer safety diaphragm makes it wonderfully adaptable to the capacity requirements of the respective application.

  • ProMinent EXtronic - Diaphragm Metering Pump

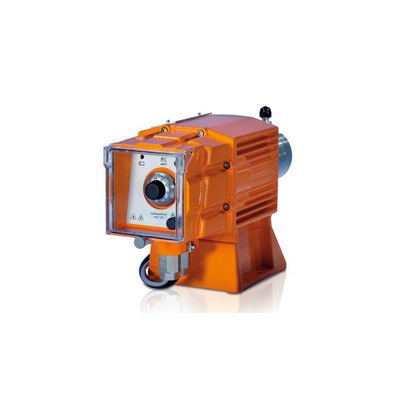

    ProMinent EXtronic - Diaphragm Metering Pump

    Capacity range of single head pump: 1 – 60 l/h; 25 – 1 bar. The diaphragm metering pump EXtronic is perfectly suited for the sensitive use of liquid media in facilities with an explosive gas atmosphere as well as for mines at risk of firedamp, as it is approved in compliance with the EU EX Regulation 2014/34/EU (ATEX).

  • ProMinent Zentriplex - Model API 674 - Process Hydraulic Diaphragm Metering Pump

    ProMinent Zentriplex - Model API 674 - Process Hydraulic Diaphragm Metering Pump

    Capacity range 424 – 8,000 l/h, 367 – 36 bar. The Zentriplex guarantees excellent performance and provides outstanding efficiency as an oscillating triplex process diaphragm pump, with an extremely small footprint thanks to the space-saving arrangement of the pump and drive unit. It also stands out on account of its efficiency, as minimal material and labour are required.
