ProMinent GmbH

12 products found

ProMinent GmbH Products

  • Process Metering Pumps - Hydraulic Diaphragm Metering Pumps

    High pressures are no problem in metering systems as long as there is something to counter them. ProMinent hydraulic diaphragm metering pumps therefore use a hydraulic fluid to create back pressure. You will soon notice the benefits for the diaphragm.

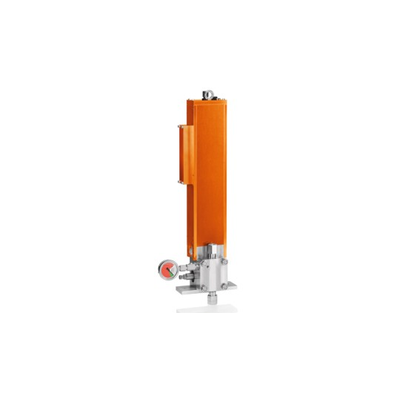

  • ProMinent - Model Evolution Mikro - Hydraulic Diaphragm Metering Pump

    ProMinent - Model Evolution Mikro - Hydraulic Diaphragm Metering Pump

    Capacity range 0.01 – 18 l/h, 400 – 16 bar. The Evolution mikro is an innovative micro-metering pump for high pressures. The hydraulic diaphragm metering pump is the first of its kind with an electronically regulated linear direct power end. The power end has few mechanical functional elements and thus operates with virtually minimal maintenance.

  • ProMinent - Model Hydro/ 2 - Hydraulic Diaphragm Metering Pump

    ProMinent - Model Hydro/ 2 - Hydraulic Diaphragm Metering Pump

    Capacity range of single pump: 3 – 72 l/h, 100 – 25 bar. As an extremely robust hydraulic diaphragm metering pump, the Hydro/ 2 meets the most exacting safety requirements. Its modular construction, with either one or two dosing heads, 4 gear ratios, 2 dosing head sizes and 3 dosing head materials, offers a very high degree of flexibility in terms of areas of application.

  • ProMinent - Model Hydro/ 3 - Hydraulic Diaphragm Metering Pump

    ProMinent - Model Hydro/ 3 - Hydraulic Diaphragm Metering Pump

    Capacity range of single pump: 10 – 180 l/h, 100 – 25 bar. The Hydro/ 3 is an extremely robust hydraulic diaphragm metering pump. It meets the most exacting safety requirements. Its modular construction offers extremely good flexibility in terms of application, for example in the oil and gas industry.

  • ProMinent - Model Hydro/ 4 - Hydraulic Diaphragm Metering Pump

    ProMinent - Model Hydro/ 4 - Hydraulic Diaphragm Metering Pump

    Capacity range of single pump: 130 – 1,450 l/h, 25 – 7 bar. The Hydro/ 4 is an extremely robust hydraulic diaphragm metering pump, which meets the most exacting safety requirements – it is equipped as standard with a pressure relief valve and PTFE multi-layer diaphragm with diaphragm rupture warning system. Its modular construction offers extremely good flexibility in terms of applications.

  • ProMinent - Model Makro/ 5 - Hydraulic Diaphragm Metering Pump

    ProMinent - Model Makro/ 5 - Hydraulic Diaphragm Metering Pump

    Capacity range of single pump: 450 – 6,108 l/h, 25 – 6 bar. The robust hydraulic diaphragm metering pump Makro/ 5 guarantees outstanding process reliability. Its modular construction offers extremely good flexibility and a large range of power end versions are available.

  • ProMinent Orlita Evolution - Hydraulic Diaphragm Metering Pump

    ProMinent Orlita Evolution - Hydraulic Diaphragm Metering Pump

    Capacity range of single head pump: 3 – 7,400 l/h, 400 – 8 bar. The Orlita Evolution meets the most exacting safety requirements as an extremely robust hydraulic diaphragm metering pump. It is characterised by its PTFE multi-layer diaphragm with integral diaphragm rupture warning / signalling and unique diaphragm position control.

  • ProMinent Orlita - Model MF - Hydraulic Diaphragm Metering Pump

    ProMinent Orlita - Model MF - Hydraulic Diaphragm Metering Pump

    Capacity range of single pump: 0 – 13,000 l/h, 700 – 6 bar. The hydraulic diaphragm metering pump Orlita MF offers reliable capacities even under high pressure and has a modular construction, therefore has versatile uses. Thanks to its modular design, this pump is tailored to meet your requirements even at very high pump capacities.

  • ProMinent Orlita - Model MH - Hydraulic Diaphragm Metering Pump

    ProMinent Orlita - Model MH - Hydraulic Diaphragm Metering Pump

    Capacity range of single pump: up to 800 l/h, up to 700 bar. The diaphragm metering pump Orlita MH has a robust metal diaphragm, which permits precise pump capacities even at very high pressure. The ORLITA MH has a modular construction and therefore has a versatile range of uses. A range of power end versions are therefore available and drives, power ends and dosing heads can be freely combined.

  • ProMinent Orlita Evolution - Model API 674 - Process Hydraulic Diaphragm Metering Pump

    ProMinent Orlita Evolution - Model API 674 - Process Hydraulic Diaphragm Metering Pump

    Capacity range per pump head: 3 – 7,400 l/h, 400 – 8 bar. The hydraulic diaphragm metering pump Orlita Evolution API 674 is characterised by a PTFE multilayer diaphragm with integral diaphragm rupture warning and by its unique diaphragm position control. For critical and heavy Industrial applications and when meeting exacting safety requirements.
