Pulsed Hydraulics, Inc. products
PHI Hydro-Pulse - Mixing System
Pulsed Hydraulics, Inc. provides water and wastewater plant operations with a totally unique “Hydro-Pulse” system that mixes without in-basin moving parts, is infinitely adjustable, yet simple to install, operate and maintain. The result is significant power savings over traditional mixers. Our patented process mixes the entire contents of the tank. The PHi mixing process is non-shear and does not entrain oxygen into tank contents. There are no moving parts within the tank, which keeps the system’s reliability high and maintenance costs low.

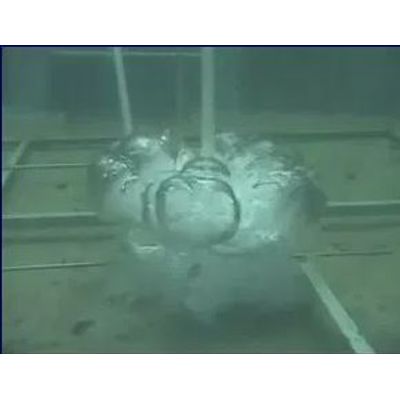

PHI - Large Bubble Mixer for Grease Removal and Odor Reduction in Lift Stations
The system consists of an air compressor (minimum size 5HP), a valve enclosure contain-ing one to eight one inch electro-pneumatic poppet valve(s) which are opened by air pres-sure using a small electric pilot valve, opening the pneumatic circuit that pushes the poppet valve open in under 80 milliseconds. The valve is held open for 500 milliseconds (1/2 second) by the valve controller.
