Quilton S.A.

12 products found

Products

  • Filtering Screens and Bar Screens

  • Quilton - Self-Cleaning Filtering Screen

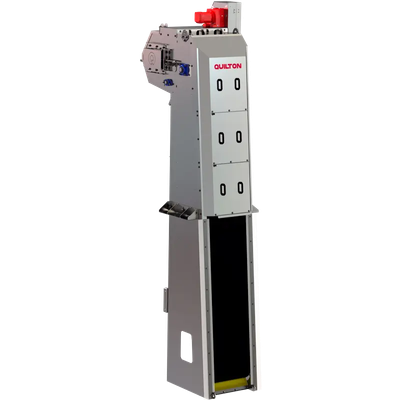

    Quilton - Self-Cleaning Filtering Screen

    QUILTON continuous band self-cleaning filtering screen combines the filtering screen with its cleaning system, which ensures the automatic removal of floating and suspended screenings in a flow of liquid. The size of the screenings that it is able to remove ranges from a diameter of 70 mm., for Q-100 models, to a diameter of 180 mm for Q-200 models.

  • Quilton - Stormwater Screen

    Quilton - Stormwater Screen

    The Quilton Screen type Romag CSO (Combined Sewer Overflow is designed as a modular system. Every model consists of the same elements that are assembled according to the needs required. The sides consist of rigid square tubing and sections of folded steel sheet, which are used to support the screen, the cleaning trolleys and the drive system. The bars on the screen are made of stainless steel and are pre-stressed. Due to this,...

  • Quilton - Rotor Screen

    Quilton - Rotor Screen

    The Quilton Rotor Screen is a drum screen that is used for filtering different kinds of fluids. The water passes through the wire comprising the drum, whilst those solids larger than the slot of the screen are retained on its surface. These retained screenings are conveyed by the drum as it rotates until they are removed from it by a scraper, which rests against the length of the drum. The filtered water flows through the profiles of...

  • Quilton - Static Screen

    Quilton - Static Screen

    The Quilton Static Screen is based on the principle of the “Coanda effect”, whereby the liquid to be filtered passes through the bars of the screen, leaving the solids larger than the slot on it surface. Its originality resides in the shape of the bars of the screen. This constitutes a vital advantage in operation when compared to static screens with straight bars. Indeed, the solids retained are concentrated on the lowest...

  • Quilton - Intake Screen

    Quilton - Intake Screen

    The passive filter for water intake Quilton type Johnson is manufactured in stainless steel using wedgewire to minimise clogging. Each intake is fitted with an air distributor for cleaning. The Quilton type Johnson water intakes are a registered model based on an average through slot velocity of 0.135 m/s (0.15 m/s maximum). The drag on solids is minimised at this velocity.

  • Conveyors and Sand Separators

  • Quilton - Conveyor

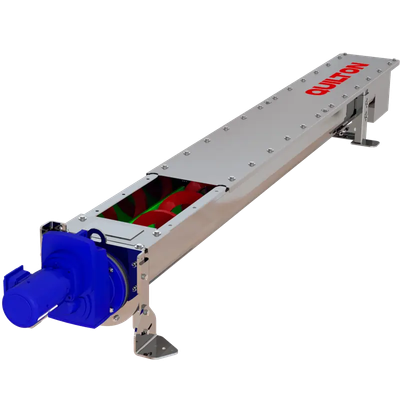

    Quilton - Conveyor

    Shaftless Quilton conveyor (QT) is fitted with a robust shaftless spiral, in very thick steel and with a drive unit that operates at very low revolutions. This design of the spiral without a central shaft gives the Conveyor greater transport capacity, making it less sensitive to fibrous materials or to those tending to accumulate, and able to transport products of wide-ranging sizes. Nothing stops the forward movement of the materials...

  • Quilton - Conveyor Compactor

    Quilton - Conveyor Compactor

    The Quilton Conveyor Compactor (QTC) only requires a single operation to perform the transport and compacting of screenings in treatment plants or in industrial processes. The adjustment of the length of the spiral and of the pressure exerted by the outlet clapper (fitted with springs) allow for regulating compaction. Depending on the applications, the volume lost at the outlet is around 30 to 40%. This equipment normally operates on...

  • Quilton - Conveyor Elevator

    Quilton - Conveyor Elevator

    Quilton shaftless elevator conveyor (QTV) is used for gradients on the horizontal exceeding 30°. It is fitted with a robust shaftless spiral, in very thick steel and with a drive unit that operates at very low revolutions. This design of the spiral without a central shaft gives the Elevator greater transport capacity, making it less sensitive to fibrous materials or to those tending to accumulate, and able to transport products of...

  • Covers and Domes

  • Quilton - Model GRP - Glass-Fibre Reinforced Polyester Resin Cover

    Quilton - Model GRP - Glass-Fibre Reinforced Polyester Resin Cover

    Quilton Covers type Maier are structures of modular composition, made of unsaturated polyester resin, reinforced with glass fibre. The geometry and characteristics of each cover will depend on the shape and dimensions of the basin to be covered, which will also determine the model of cover to be used. The following are some of the types available:

  • Quilton - Aluminium Alloy Flat Cover

    Quilton - Aluminium Alloy Flat Cover

    Quilton aluminium covers in alloys with magnesium are especially resistant to the corrosive media present in wastewater treatment plants. Technologies have been developed that have been applied and verified for over 30 years. All this has led to a series of advantages, namely:

  • Other Equipments

  • Quilton - Model QPH - Hydraulic Compactor

    Quilton - Model QPH - Hydraulic Compactor

    The Quilton Hydraulic Compactor (QPH) is an equipment that performs the dewatering of the screenings from wastewater and displaces or raises them a short distance (1.5 m). It basically consists of three parts:

  • Quilton - Tipping Bucket

    Quilton - Tipping Bucket

    It is the most commonly used equipment for the flushing of storm tanks, once these have been emptied.
