Reflex Winkelmann GmbH products

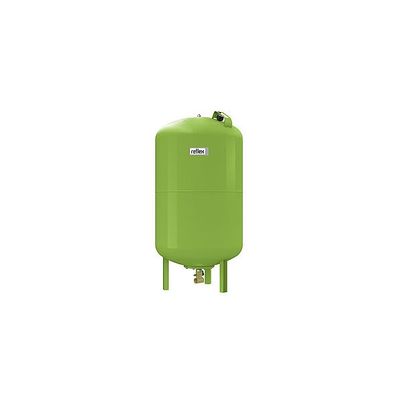

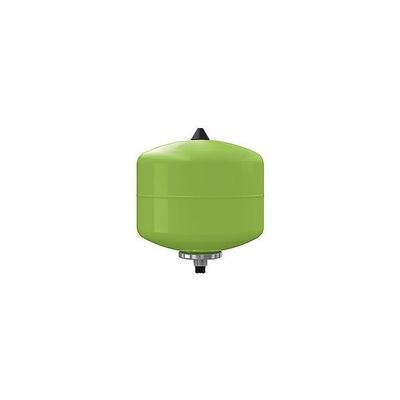

Refix DD flow through bladder pressure vessel for drinking water heating, water supply, and pressure booster systems. Built and tested according to DIN 4807 part 5, EN 13831. Approval according to EU Directive 2014/68/EU for pressure equipment.

Refix DT with Flowjet 1 1/4" and integrated internal anti-legionella circulation, vessel for drinking water applications,water heating, water
supply and pressure booster systems. Built and tested according to EN 13831 respectively DIN-DVGW. Approval according to 2014/68/EU directive for pressure equipment.

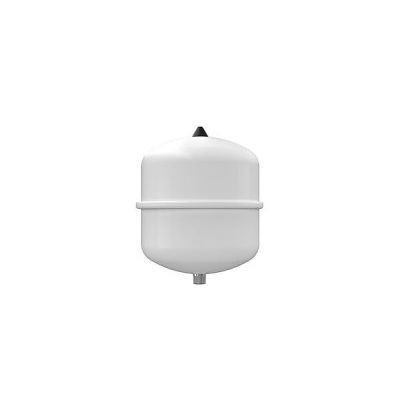

Diaphragm expansion vessel for closed heating and cooling systems,  built acc. to EN 13831. Approval acc. to EU Pressure Equipment
Directive 2014/68/EU

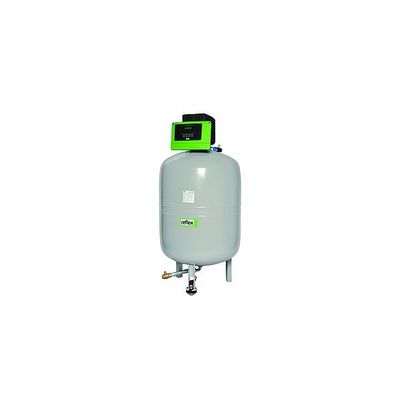

Reflexomat Silent Compact, compressor-controlled pressure maintenance station of compact design for closed heating and cooling circuits. Constructed in compliance with the safety requirements of DIN EN 12828 and the requirements of VDI 4708, with CE Marking. The Reflexomat Compact unit comprises a floor-standing diaphragm expansion vessel, constructed in accordance with DIN EN 13831 and directive EU 2014/68/EU (EU-PED) with CE Marking, plus an attached control unit comprising compressed air pneumatics and vertical, easy-to-operate Reflex Control Basic and operating unit.

Reflexomat Silent Compact, compressor-controlled pressure maintenance station of compact design for closed heating and cooling circuits.  Constructed in compliance with the safety requirements of DIN EN 12828 and the requirements of VDI 4708, with CE Marking.  The Reflexomat Compact unit comprises a floor-standing diaphragm expansion vessel, constructed in accordance with DIN EN 13831 and directive EU 2014/68/EU (EU-PED) with CE Marking, plus an attached control unit comprising compressed air pneumatics and vertical, easy-to-operate Reflex Control Basic and operating unit.

Reflex Variomat Giga Hydraulic, module in compact design for Reflex Gigamat pump-controlled pressurization unit. Suitable and equipped for the operation in heat generating systems acc. to EN 12828, EN 12952, 12953 as well as the requirements of the TRD 604 sh. 2.

Vacuum spray degassing unit with integrated automatic refill for closed heating or chilled water circuits which are equipped with pressurization units as well as installations with static precharged expansion vessels. Active and central degassing of the installation according to the principle of vacuum degassing.

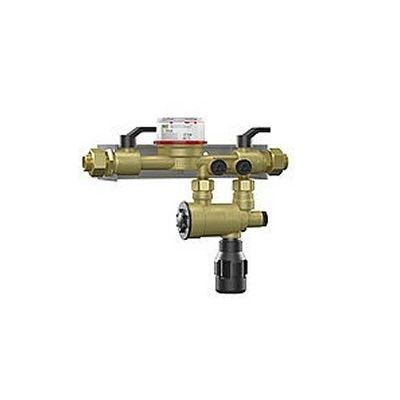

Prefabricated assembly with wall bracket for the direct connection of make-up units for heating and cooling systems with the drinking water mains.
