Regulator-Cetrisa products

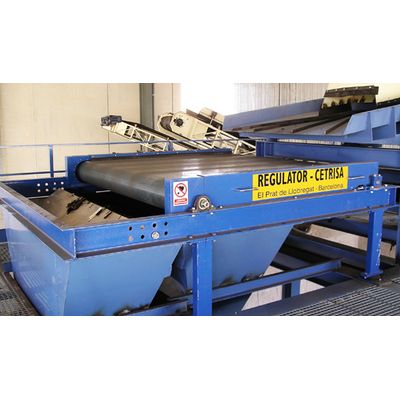

The Eddy Current Separator (R-SPM) is able to separate the Non-Ferrous metals from the rest of the materials due to its studied magnetic assembly called the “Inductor Drum”, which rotates at high speed. When a Non-Ferrous Metal crosses the induced magnetic field, it undergoes a repulsion effect and jumps a certain distance ahead of the Foucault drum and away from the rest of the materials.

Non-Ferrous Metals Eddy current Separator Eccentric (R-SPM-E) is able to separate the non-ferrous metals from other materials thanks to its studied magnetic drum set called inductor, which rotates at high speed. When a non-ferrous metal crosses the induced magnetic field undergoes a repulsion effect and jumps at some distance ahead Foucault drum and away from other materials.

The Cans & Briks* SORTER (R-SLB) is classifying equipment that processes the flow of material made up of cans and briks1 that are previously separated from the general flow of the Municipal Solid Waste by means of an Eddy Current Separator. The cans undergo the most influence and are thrown ahead, where they are distinctly separated from the briks. ¹Brik: Package very used for beverages and sauces into the food industry. Carton+aluminium+plastic complex made of.

The Metal Separator by Inductive Detection and Blowing (R-SIM) can separate the metals from the rest of the materials. A metal is detected over the acceleration belt. After processing the information at high speed, a complex pneumatic system conducts the blowing of the metal, changing its path and separating it from the natural movement of the rest of the materials.

The Very Low Iron Metal Separator (R-INOX) has a drum of high remanence with highly powerful magnets that can separate iron metal from light iron metal (similar to stainless steel) and from the inert.

A coil rolled over a magnetic pole, with a passing electric current, provokes a magnetic field. An iron material that crosses this magnetic field will be attracted to the coil and automatically separated from the rest of the materials, thanks to the plugs of the evacuation band. The Electromagnetic Overband (R-SKM) can be installed either transversally or longitudinally.

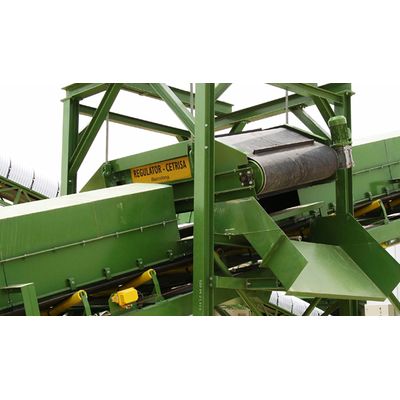

The magnetic field is produced by the joining of highly powerful magnets. An iron material that crosses this magnetic field will be attracted to the magnets and separated from the rest of the materials, driven by the pulling band. The Permanent Magnetic Overband (R-OMP) can be installed either transversally or longitudinally.

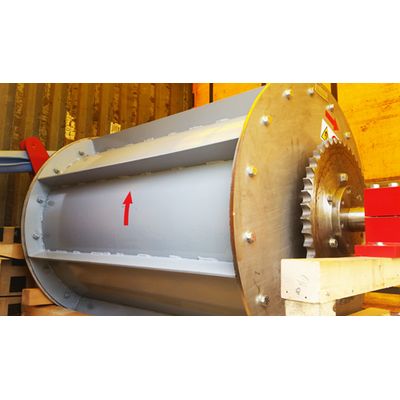

The Permanent Magnetic (R-TMP) or Electromagnetic (R-TME) Drum is a cylinder with transversal blades. The magnetic field is fixed, partially occupies the surface and its position can be regulated. The operation is simple: attracted iron material is pulled by the blades and separated from the non-iron materials, until it reaches the non-magnetic area, where it becomes detached and falls.

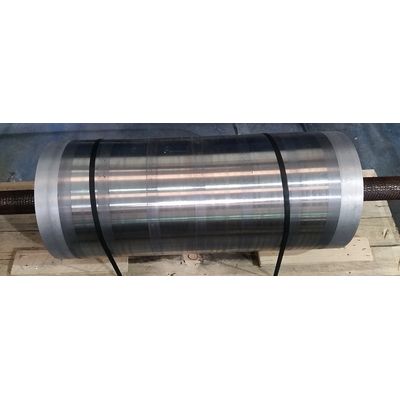

The Magnetic Roller (R-RM) consists of a cylinder where the whole surface is magnetized. It is usually used as a roller at the end of the belt.

The Permanent Magnetic (R-BMP) or Electromagnetic (R-BME) Block attracts the ferrous metals, but unlike the overband, there is no automatic extraction system. The cleaning is manual.
