SA Fire Protection products

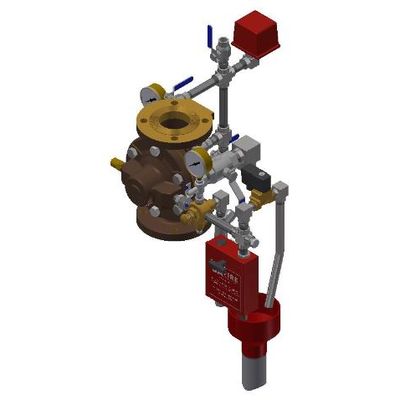

The deluge valves Mod. VD are diaphragm type valves available in diameter sizes from 2” (DN 50) to 12” (DN 300).

The valve Mod.VD/D/Eis a deluge valve with electric actuation available in diameter sizes from 2” (DN 50) to 10” (DN 250).

The valveMod.VD/D/EPis a deluge valve with electro-pneumatic actuation available in diameter sizes from 2” (DN 50) to 10” (DN 250)

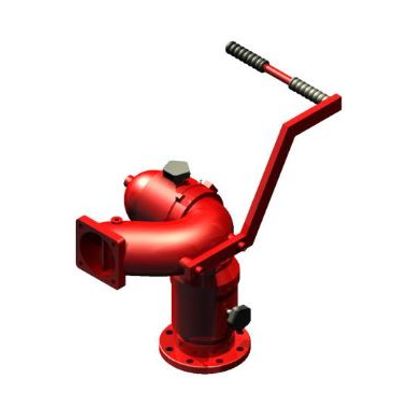

The IGUANA model is a hand lever operated manual monitor with single water way body. Very easy to operate, the Iguana monitor is capable of withstanding flows up to 3000 Ipm (750 gpm) and may be base flanged 3" or 4* UNI or ANSI. Movements on the vertical & horizontal plane can be performed by a lever that transfer the operator force towards the monitor joints, making the monitor movements very smooth. Both vertical and horizontal joints can be secured by two manual locks that allow the operator to adjust the monitor to the required  orientation  and  leave it operational.

The Niagara monitor is a hand lever operated monitor with single water way body. Very easy to operate, the Niagara monitor is capable of withstanding flows up to 8500 Ipm (2250 gpm) and may be base flanged 3": 4" or 6" UNI or ANSI. Movements on the vertical & horizontal plane can be performed by a hand lever that transfer the operator force to the monitor joints, making the  monitor movements very  smooth.

The SA type PP Automatic Rim Seal Fire Suppression System is a premixed and foam package permanently pressurised with an integrated pneumatic linear fire detection tube. The system is used on top of Floating Roof Tanks to protect the seal zone and is designed for early fire detection and fast suppression acting directly on the rim seal zone by means of low expansion directional nozzles.

The SA type UP-NP Automatic Rim Seal Fire Suppression System is an un-premixed foam package with external pressurization cartridge. The fire detection system is made of an integrated pneumatic linear fire detection tube connected to a nitrogen cylinder also used as external cartridge for the pressurization of the foam tank. The tank is filled with a charge of water and an internal cartridge of foam concentrate that is mixed with the water only when the system is called in operation.

The SA type HALOCARBON HFC 227 ea is an Automatic gas based Rim Seal Fire Suppression System integrated with a pneumatic fire detection tube. The system is used on top of Floating Roof Tanks to protect the seal zone and is designed for early fire detection and fast suppression acting directly on the rim seal zone by means of bulb type nozzles.

To allow for the implementation of a safe to entry procedure for the environments protected with a C02 fire protection system it is possible to install an interlock system Mod. CKLA manufactured in order to fulfil the requirements of NFPA 12 A.4.5.6.2.3. The system is made of a status panel, one or more lock out valves for the mechanical isolation of the C02 flow and one or more door interlocks to be applied on the doors of the protected enviroments.
