SAXON Pruftechnik GmbH products

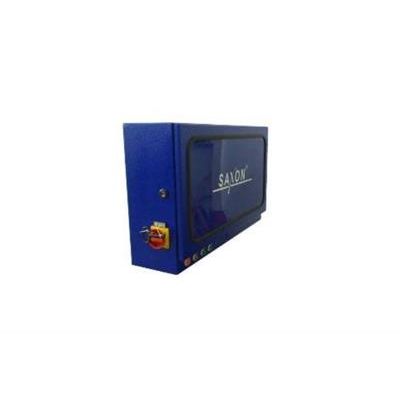

Scope of delivery like 29392, but: without analogue pointer display with control box and USB-CAN adaptor with software for Windows computer.

For light trucks or empty standard trucks, trailer, bus, transporter and cars.

The mechanical parts have a min. height of 280 mm as seen from floor level. For straight levelling there is a hydraulic system which enables you to compensate deviations up to 100 mm in forward and side directions. The ramps are self fitting to it’s surrounding uneven surface area. The standard test width is 700 mm on the inside and 3000 mm on the outside. Due to the special design of the ramps, vehicles with a chassis ground height of 150 mm as well as wheel diameters between 12“ and 44“ with even thick profiled tyres, can be tested.

Double roller set for testing cars, vans, and light commercial vehicles as Taxi and rentals. Hydraulic moving system for axle distance with autimatic adjustment of wheel base. Mechanic system and cover plates fully hot galvanised. Special balanced rollers. Special motor drive for 4WD vehicles with speed synchronization for testing without running engine of the vehicle. Lateral safety rollers, free adjustable. Pneumatic lift bar with roller brake for easy drive in and drive out. Light barrier for counting wheel rotations. Roller sensor with high resolution. User friendly software with database for tariffs for Taxi of local communities. Special remote control for operation from driver`s seat.
