SENSYS GmbH products

Survey Systems - Aerial

SENSYS - Model MagDrone R4 - Drone-Integrated Magnetometer for High-Resolution Surveys

The MagDrone R4 by SENSYS is an advanced drone-compatible magnetometer designed for high-resolution mapping and surveying over extensive areas where traditional ground surveys are impractical. Unlike its predecessor, the R3, the R4 excels in detecting small, compact objects and underground structures, ideal for identifying unexploded ordnance, archaeological features, and past settlements. Operating at a sensor distance of 50 cm with a track spacing of 2.5 meters, it can cover between 3 to 4 hectares per hour. It offers straightforward operation with a single button interface and an onboard server accessible via Wi-Fi-enabled devices such as smartphones and tablets. Data processing is facilitated by the MagDrone Data Tool, which enables track identification, data filtering, and exportation for use in MAGNETO® software or other applications. Furthermore, its 200 Hz sampling rate ensures effective noise filtration from surrounding infrastructures and UAV motor emissions, consolidating its integration onto drone landing gear.

Survey Systems - Borehole

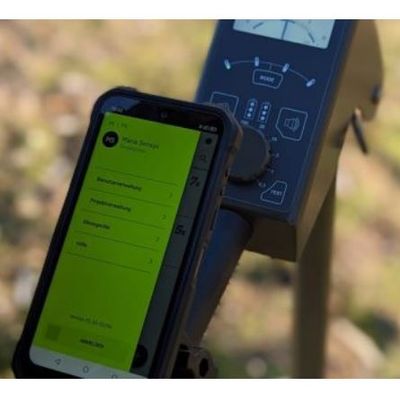

SENSYS - Model SBL10 - Magnetic Detection Device

The SENSYS SBL10 is a compact and handheld device designed for efficient detection of ferromagnetic objects in the ground. Its lightweight design of just 3.7 kg, coupled with an intuitive interface, makes it user-friendly and ideal for quick deployment. The SBL10 incorporates a folding mechanism that eliminates the need for assembly, enabling rapid operational readiness. It features a measurement range of ±30,000 nT, making it capable of detecting both small ferrous items and deeply buried large objects up to depths of 5 to 6 meters. Equipped with two battery compartments and intelligent power management, the device can operate for over 100 hours on standard LR20 batteries. Additional modules like the FGM400/38 probe enhance its capabilities for borehole or underwater surveys. With the integration of a wireless PDA for data recording and SENSYS MonSX software, users can instantly visualize survey results as colored maps, facilitating immediate interpretation in the field. The entire unit is encased in a robust and portable design.

Sensors & Recorder

SENSYS - Model FGM3D UW - Precision Fluxgate Magnetometer for Offshore

The FGM3D UW is a compact three-axis Fluxgate magnetometer for maritime applications.
