SERAPID Group products

Lifting Columns

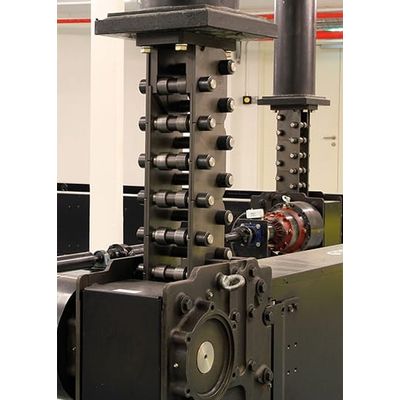

Serapid - Model LinkLift - Electrical-Mechanical Actuator for Heavy Load Vertical Lifting

The SERAPID LinkLift is an electrical-mechanical actuator crafted to handle the vertical movement of heavy loads with precision and controlled smoothness. It finds applications across theater stages, industrial settings, or any field requiring secure and precise vertical positioning. Utilizing SERAPID's Rigid Chain Technology, the LinkLift offers robust vertical lifting over extensive distances. The system excels with precise millimeter positioning, maintaining stability even with eccentric loads and dynamic external forces. The LinkLift achieves this through multiple sprockets driving a specialized chain with block-shaped links for rigidity, guided within the drive casing to ensure proper alignment. It features a high payload capacity, supporting up to 15 tons dynamically and up to 20 tons statically, with operational speeds reaching 300 mm/s or more. The system benefits from low noise and vibration levels, eliminating load bouncing and maintaining stable positioning. Applications extend to orchestral platforms, modular venue transformations, and industrial lifting needs, while offering low maintenance and long-term efficiency greater than 80%.

Serapid - Model HDLift - Vertical Lifting Column

The SERAPID HDLift is designed for high-frequency vertical lifting applications, boasting a capability of executing over 15 cycles per hour with a minimum service life of 1 million cycles under maximum load. This sealed lifting column includes a permanent oil bath lubrication system, necessitating yearly maintenance. Protective bellows can be added to safeguard the chain. The HDLift series includes five standard models with dynamic load capacities up to 50 kN and an adjustable stroke range of up to 2.5 meters. Designed with durability in mind, it can operate in severe conditions like clean rooms, dusty areas, and under extreme temperatures, humidity, radiation, or chemical exposure. It supports various motorization options such as electric, pneumatic, or hydraulic. The HDLift provides precise positioning, accurate to the nearest millimeter at speeds up to 300 mm/sec. Customization options are available to meet specific requirements.

Horizontal Load Transfer

Serapid - Model LinearBeam - Actuator for Heavy Load Transfer

SERAPID's LinearBeam is an advanced horizontal actuator engineered to handle the efficient transfer of heavy loads over long distances at high speeds. Utilizing SERAPID's renowned rigid-chain technology, the LinearBeam ensures reliable load propulsion with interlocking links that mimic the strength of a solid bar while offering flexibility during retraction. The actuator's innovative design allows the returning chain to be stored parallel to the transfer path, optimizing installation space and easing setup in confined environments. The LinearBeam is mechanically robust, boasting an energy efficiency rating between 80 to 90 percent, and requires low maintenance. It offers a highly adjustable stroke range starting from a minimum of 1 meter with no upper limit and can manage loads between 1 kN to over 160 kN. Certified for use in potentially explosive environments under ATEX Category II 2GD c T4, the LinearBeam is built for durability and high performance in challenging conditions like clean rooms, dusty areas, extreme temperatures, and chemically aggressive settings. The system provides precisely controlled positioning to the nearest millimeter and supports various motorization options including electric, pneumatic, or hydraulic configurations.

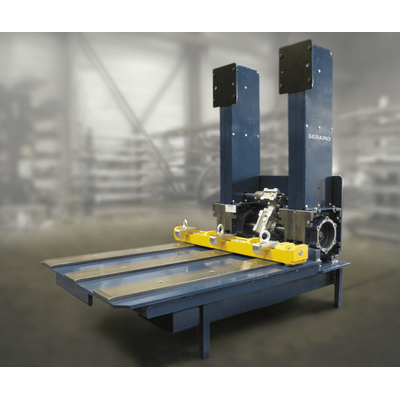

Serapid - Model RollBeam - Mechanical Linear Actuator for Heavy Load Transfer

The RollBeam series by SERAPID offers a range of mechanical linear actuators specifically designed for efficient push/pull applications and heavy load transfer in industrial environments. Known for its versatility, the RollBeam system utilizes a rigid chain composed of interlocking links that drive loads with the strength of a solid bar, while conveniently rolling up into a compact magazine during retraction. Depending on the application, the magazine can be vertically or horizontally positioned. This series covers load capacities up to 50 tons and provides practically unlimited stroke lengths. Multiple units can be combined for higher load capacities and optimized system configurations. The RollBeam’s telescopic operation ensures an unobstructed transfer area when not in use, enabling easy installation in confined spaces. It operates mechanically with a high energy efficiency rating of 80 to 90 percent, ensuring a long lifespan and low maintenance. The system supports various motorization options including electric, pneumatic, or hydraulic power, and comes with numerous customization options to suit specific industrial requirements. Its robust design ensures performance in harsh environments, making it an ideal choice for applications needing high-frequency operation and precision positioning.

Press Equipment

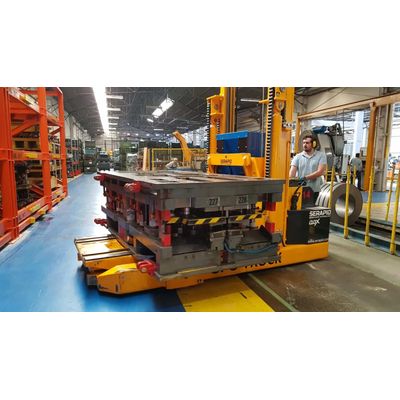

Serapid - Standard Die Handling Cart (up to 20 tons)

The SERAPID Standard GPO Die Handling Truck is designed to facilitate die handling tasks with capacities up to 20 tons. Utilising SERAPID's rigid chain technology, the truck provides precise and controlled movement both vertically and horizontally, enabling accurate die positioning with enhanced speed and efficiency. The truck's robust construction ensures safe and smooth die transportation, while its user-friendly, ergonomic controls simplify operation. The engineering of the truck emphasizes durability and low maintenance, making it a reliable and cost-effective solution for heavy-duty die handling in various industrial settings.
