Shanghai Haibar Mechanical Engineering Co., Ltd. products

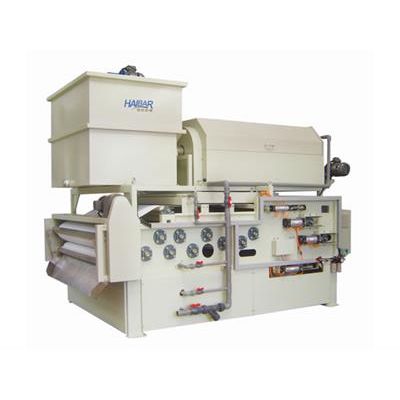

Widely used in a variety of industries, the belt filter press carries out a combined thickening and dewatering process and is an integrated device for sludge and waste water treatment. HAIBAR`s belt filter press is 100% in-house designed and manufactured, featuring a compact structure in order to treat different types and capacities of sludge and wastewater. Our products are well-known throughout the industry for their excellent performance, as well as their efficiency, low energy consumption, low polymer consumption, cost saving performance and long service life. An HTA Series belt filter press is an economical belt press known for the rotary drum thickening technology.

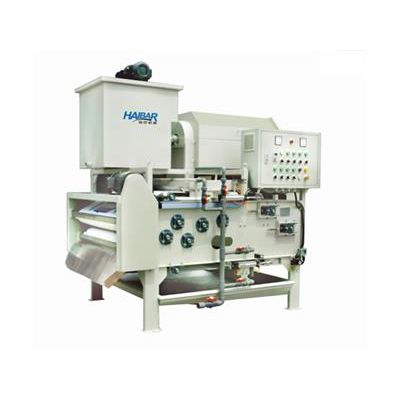

Widely used in a variety of industries, the HTB belt filter press combines the thickening and dewatering processes into an integrated machine for sludge and wastewater treatment. HAIBAR`s belt filter presses are 100% designed and manufactured in house, and feature a compact structure in order to treat different types and capacities of sludge and wastewater. Our products are well known throughout the industry for their high efficiency, low energy consumption, low polymer consumption, cost saving performance and long service life. An HTB series belt filter press is a standard filter press featuring rotary drum thickening technology.

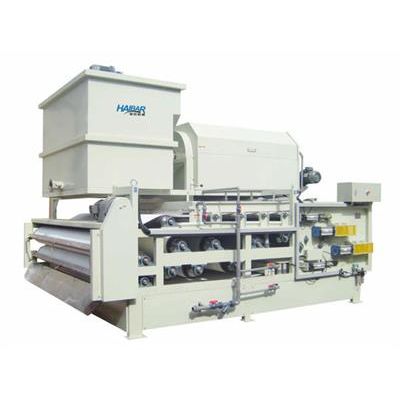

Widely used in a variety of industries, the HTBH belt filter press combines the thickening and dewatering processes into an integrated machine for sludge and wastewater treatment. HAIBAR`s belt filter presses are 100% designed and manufactured in house, and feature a compact structure in order to treat different types and capacities of sludge and wastewater. Our products are well known throughout the industry for their high efficiency, low energy consumption, low polymer consumption, cost saving performance and long service life. An HTBH series belt filter press is a standard filter press featuring technology for rotary drum thickening, and is a modified product based on the HTB series. Both the conditioning tank and rotary drum thickener have been redesigned for treatment of low concentration sludge and wastewater.

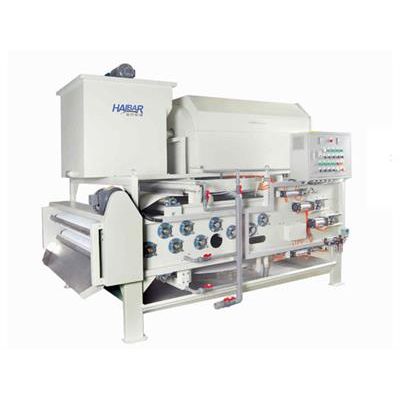

Widely used in a variety of industries, the HTE belt filter press combines the thickening and dewatering processes into an integrated machine for sludge and wastewater treatment. HAIBAR`s belt filter presses are 100% designed and manufactured in house, and feature a compact structure in order to treat different types and capacities of sludge and wastewater. Our products are well known throughout the industry for their high efficiency, low energy consumption, low polymer consumption, cost saving performance and long service life. An HTE belt filter press is a heavy duty filter press using the featured technology of rotary drum thickening.

An HNS series thickener works with a rotary drum thickening process to obtain a high solid content treatment effect.

An HBT series thickener works with a gravity belt type thickening process in order to obtain a high solid content treatment effect. Polymer costs are reduced due to the lowered number of flocculants required than a rotary drum thickener, though this machine takes up a slightly larger floor space. It is ideal for sludge treatment when the sludge concentration is below 1%.

The HPL2 series continuous polymer preparation system is a kind of macromolecule automatic dissolver. It is composed of two tanks which are respectively used for liquid mixing and maturing. The separation of two tanks by a partition panel allows the mixture to enter the second tank successfully.

A dissolved air flotation (DAF) is an effective method for the separation of solid liquid and liquid liquid that is close to, or smaller than, water. It has been widely used in water supply and drainage treatment processes.

Our integrated sludge dewatering system consists of the sludge pump, sludge dehydrator, air compressor, cleaning pump, control cabinet, as well as the flocculants preparation and dosing system. A positive displacement pump is recommended as a sludge pump or flocculants dosing pump. In line with the requirements of our customers, we can provide a full set of HBJ series drainage system solutions.

A HSF unit consists of a screw screen, a sedimentation tank, a sand extracting screw and an optional grease scraper.
