Siemens Industry, Inc. - Process Analytics products

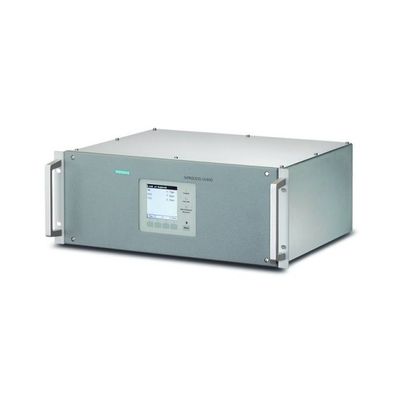

The SIPROCESS UV600 is an extractive UV gas analyzer that can measure up to three components simultaneously. SIPROCESS UV600 with state of-the-art electronics and software, has the interfaces required for remote monitoring from a network as well as connecting to a process control system.

The ULTRAMAT 23 is an innovative multi-component gas analyzer which can be equipped with the following sensors: IR detector for IR-active gases, UV photometer for UV-active gases, H2S sensor (electrochemical), O2 sensor (electrochemical or paramagnetic), and used accordingly in numerous applications and industries. The integrated automatic calibration function using ambient air provides the unique advantage of requiring a test with calibration gases only once a year. Menu-guided operation in plain text allows users and service personnel to operate the device immediately. Preventive maintenance is made possible by the information in the logbook.

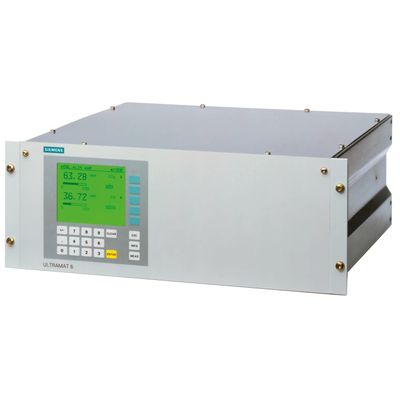

The experts in IR-active components: Most frequently used for sophisticated applications, the ULTRAMAT 6 must meet high standards with regard to reliability and measurement quality. This is guaranteed by modern electronics, ease of operation, and a physical element that is adapted to the measurement task.

Best combination for IR-active components and oxygen. The ULTRAMAT/OXYMAT 6 combines the features of the ULTRAMAT 6 and the OXYMAT 6 in one 19" analyzer. Most frequently used for demanding applications, the ULTRAMAT/OXYMAT 6 must meet high standards with regard to reliability and measurement quality. This is guaranteed by state-of-the-art electronics, ease of operation, and a physical element that is adapted to the measurement task.

Specializing in hydrogen and noble gases: For continuous measurement of hydrogen and noble gases, the specific thermal conductivity of the sample gas mixture is measured and used to calculate the concentration. Only binary gas mixtures can be measured directly. If more than two components are present, the concentrations of all other components must be measured separately using other measuring methods. The CALOMAT 6 can carry out internal interference correction after transmission of the external measurement results. There is no need for an external computer.

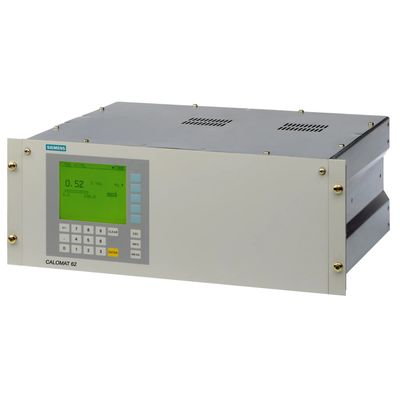

Measures hydrogen and noble gases in corrosive gases. The CALOMAT 62 is a thermal conductivity analytical device specially designed for applications in corrosive gases. Concentration of gas components such as Cl2, HCl, and NH3 can be measured directly, along with H2 and N2 in aggressive environments, for example. This results in a number of possible applications such as in chlor-alkali electrolysis, steel production and processing, LNG facilities, ammonia synthesis, fertilizer production, and in the petrochemical industry.

Gas analyzers with an FID (flame ionization detector) are well suited for continuous total hydrocarbon measurement. The measurement is not component specific but substance-class specific. In the first approximation, the measurement result is proportional to the number of C atoms in the respective molecule.

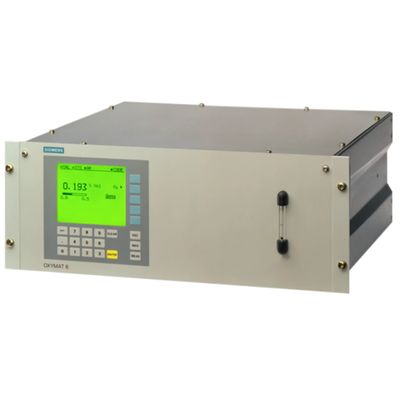

The OXYMAT 6 also meets the high standards in demanding applications through modern electronics, ease of operation, and a physical element that is adapted to the measurement task.

For oxygen standard applications. The OXYMAT 61 is a cost-effective oxygen analyzer for standard applications. The OXYMAT 61 requires ambient air as reference gas. This is supplied by a pump that is integrated into the analyzer housing. Alternatively, pressurized bottle air can be used. The OXYMAT 61 measures oxygen using the paramagnetic alternating pressure method. This guarantees perfect linearity and allows parameterization of small measuring ranges (0 to 2%) up to 0 to 100% in a single device. The SIL 2 classification obtained by OXYMAT 61 makes it easier for plant operators to comply with the statutory requirements regarding proof of risk reduction.

The OXYMAT 64 can measure oxygen concentrations in the smallest traces, even down to the minimal measuring range of 0...10 ppm. This is most relevant in air separation plants, in the technical gas production, and welding of high-alloy steels, titanium, and the like under a protective atmosphere. Further applications are realized in hardening shops, in the chemical industry, and in the food industry.
