SINUS Messtechnik GmbH products

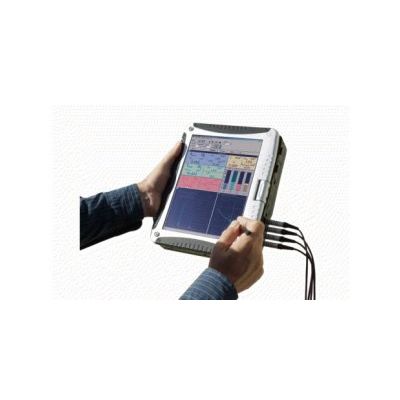

Soundbook_MK2 is the second generation of our universal measurement system for sound and vibration measurements as well as general engineering measurements. It is based on the innovative Apollo platform. The high-performance 24-bit ADCs and the advanced Apollo filter processor combine highest precision, a large number of channels and a high signal bandwidth in one device. Of course, the robust Panasonic Toughbook CF-19 serves as base equipment for the Soundbook_MK2 again.

The Apollo-Box is a flexible and reasonably priced 2- or 4-channel data acquisition system with a USB 2.0 interface. This small and robust box transforms a PC combined with our flexible software into a high-quality multi-channel measuring instrument for a wide variety of acoustic and vibration measurement applications. Based on your measurement requirements you may choose from variants with 2 or 4 LEMO7 inputs or 4 BNC inputs. Further additional channels extend the functionality of the Apollo-Box. Among others 8 additional low-sample-rate channels and 2 tacho or trigger channels are available. You may also use the Apollo-Box as a channel extension to the Soundbook MK2 measurement system, for example.

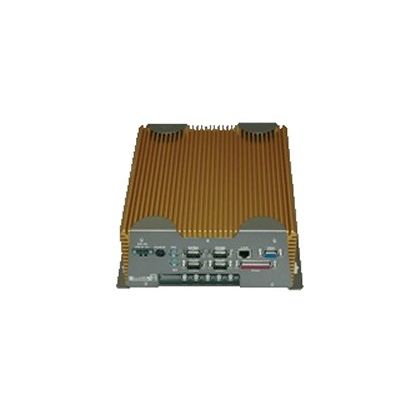

The economic importance of permanent vibration monitoring of combustion engines and other machines, as well as decentralized generators such as wind power stations, is continuously increasing. The availability of units can be improved by permanent online monitoring and technical diagnosis because dates for service and maintenance can be optimized. With the Swing vibration monitoring system SINUS Messtechnik has developed a compact and cost-effective device with a convincing modular hardware and software concept that is compatible with HARMONIE™.

The Tango sound level meter is a compact, PTB-approved, basic Class 1 sound level meter for occupational and environmental safety applications. With an intelligent software design and a measuring range of 110dB, which does not require range switching, Tango is very easy to operate despite its many functions. Tango enables even inexperienced users to measure and evaluate sound levels without errors immediately. Integrating basic sound level meter PTB model registration 21.21 / 12.04.

Integrating basic sound level meter with 1/1 and 1/3 octave analyzer according to IEC 61672 and IEC 61260 PTB model registration DE-20-M-PTB-0033.

The ultra-compact design of the Boogie sound level meter provides excellent characteristics. It is designed for easy operation, even by inexperienced users. Automatic calibration and automatic measuring range selection help to avoid measurement errors. The large and clear indication of the measured values in numbers and additionally as a quasi-analogue bar facilitates readability. With only three buttons the instrument allows simplest operation. The membrane keypad is easy to clean, and the stainless steel microphone enclosure reliably withstands the strains of everyday use.

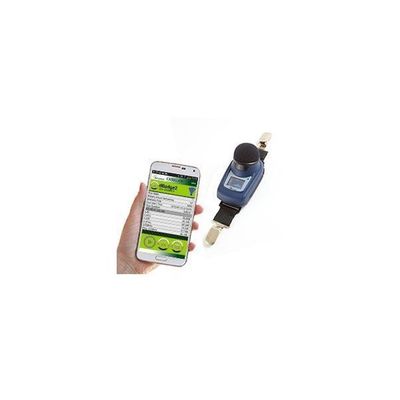

The CEL-dBadge2 dosimeters measure and store all relevant occupational noise parameters. For hearing protection selection the dosimeters simultaneously measure L_Ceq and L_Aeq. The SNR and HML values are specified by manufacturers. L_Ceq and/oder L_Aeq may be combined with these values to determine the sound pressure level at the ear using simple, internationally recognised calculations. The CEL-dBadge2 PLUS and dBadge2 PRO models additionally offer an audio recording function on exceedance of a pre-set sound level and the recording of an audio note before a measurement is started. Furthermore the dBadge2 PRO model allows octave analysis. The Airwave App permits to start, stop or pause a measurement and to monitor the battery state, measurement time, storage capacity and alarms.
