Model CEL-dBadge2 -Noise Dosimeter for Occupational Safety
The CEL-dBadge2 dosimeters measure and store all relevant occupational noise parameters. For hearing protection selection the dosimeters simultaneously measure LCeq and LAeq. The SNR and HML values are specified by manufacturers. LCeq and/oder LAeq may be combined with these values to determine the sound pressure level at the ear using simple, internationally recognised calculations. The CEL-dBadge2 PLUS and dBadge2 PRO models additionally offer an audio recording function on exceedance of a pre-set sound level and the recording of an audio note before a measurement is started. Furthermore the dBadge2 PRO model allows octave analysis. The Airwave App permits to start, stop or pause a measurement and to monitor the battery state, measurement time, storage capacity and alarms.
- Compact, robust design
- Easy operation
- 35 hours of battery life / 15 hours of battery life in octave mode
- Airwave App for mobile devices
- Bluetooth® 4.0
- Integrated display and visual alarm (LED)
- Simultaneous measurement of all occupational noise parameters
- C frequency weighting / LC-LA (HML)
- Sound level curve
- Automatic calibration function
- Use of measurement set-ups
- Motion sensor
- Audio recording (PLUS and PRO versions)
- Octave analysis (PRO version)
- Evaluation of occupational noise according to CFR 1910.95 (USA), ISO9612:2009, L108
- Hearing protection selection
- Noise exposure calculation
- Ensures compliance with the occupational noise standards and regulations
The dosimeters are available with complete accessories, including sound calibrator, carrying case, wind screen, user manual and charging station.
- IEC 61252 Ed 1.1 (2002-3): Electroacoustics - Specifications for personal sound exposure meters
- ANSI S1.25:1991 R2007: American National Standard - Specification for Personal Noise Dosimeters
- IEC 61672: Class 2 sound level meter
CEL-dBadge2
- Measuring range: 55.0 - 140.3dB(A) RMS, 143,3dB PEAK
- Measurement values:
- Maximum sound level LAFmax, LASmax, LAImax
- Equivalent continuous sound level LAeq, LCeq
- Peak levels LCpeak, LApeak, LZpeak
- Daily personal noise exposure (ISO) LAEPd, Proj LAEPd, LEX,8h
- Amplitude weightings (halving parameter) Q=3, Q=5
- Selection of hearing protection using HML / SNR method LC - LA, LCeq, LAeq
- Average continuous sound level (OSHA) LAvg
- Daily personal noise exposure (OSHA) TWA, 8h
- Frequency weightings: A, C, Z
- Time weightings: Fast, Slow, Impulse
- Display: Backlit OLED colour display
- Microphone: 1/2" Class 2 measuring microphone, permanently polarized
- Calibration: With normal 1/2" calibrator at 114dB
- Storage cycles: 24h with up to 100 cycles
- Storage capacity: 300h of level recording and up to 90 minutes of audio recording
- Interface: USB 2.0 (12Mbps) via charging station
- Battery: Internal NiMH, 800mAh
- Operating time: 35h
- Model: IP65 protection class
- Ambient conditions: Temperature -10 to + 50°C, relative humidity 30% to 90%
- Battery charging time: < 6h
- Dimensions: 85mm x 54mm x 55mm
- Weight: 117g (incl. batteries)

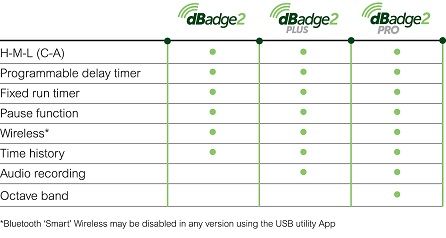

- CEL-dBadge2 PLUS
- Audio recording: Triggered audio recording (10s recording time, 3s pre-trigger, 8kHz sample rate, 16 bit resolution), audio notes
- CEL-dBadge2 PRO
- Audio recording: Triggered audio recording (10s recording time, 3s pre-trigger, 8kHz sample rate, 16 bit resolution), audio notes
- Octave analysis: 9 octave bands 31.5Hz ... 8kHz, A- or Z-weighted Leq and L max
