STS Sensor Technik Sirnach AG products
Liquid Level Transmitter - Intrinsically Safe Submersible Level Transmitters - ATEX / IECEx Certified

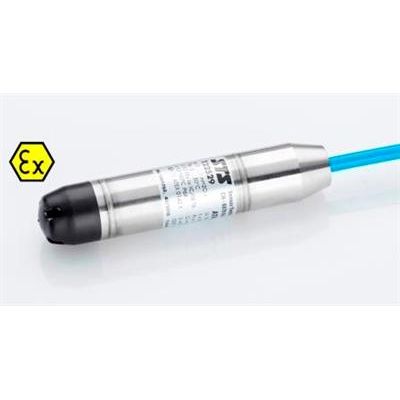

STS - Model TM/N/Ex - Passive Level Transmitter
Pressure measuring range: 1…250 mH2O. Accuracy: ≤ ± 0.50 / 0.25 % FS. Operating temperature: -5…80 °C. Process temperature: -5…80 °C. Output signal: mV. Materials: Stainless steel, Titanium.

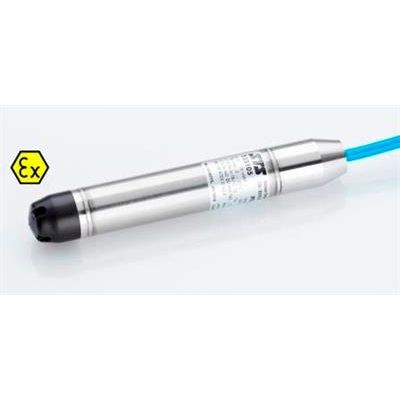

STS - Model ATM/N/Ex - Analog Level Transmitter
Pressure measuring range: 1 … 250 mH2O. Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS. Operating temperature: -5 … 80°C. Process temperature: -5 … 80°C. Output signal: 4 … 20 mA. Materials: Stainless steel, Titanium. Feature: Optional overvoltage protection.

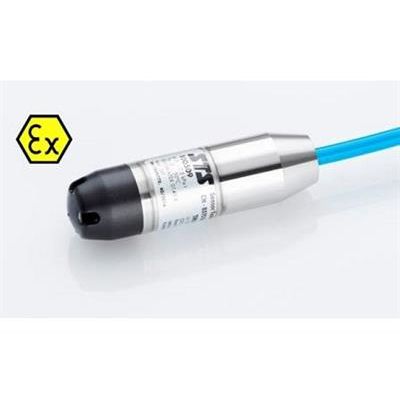

STS - Model ATM.ECO/N/Ex - Analog Level Transmitter Temperature Compensated
Pressure measuring range: 1 … 250 mH2O. Accuracy: ≤ ± 0.25 % FS. Total Error Band: ≤ ± 0.70 %FS (-5 … 50°C). Operating temperature: -5 … 80°C. Process temperature: -5 … 80°C. Output signal: 4 … 20 mA. Materials: Stainless steel.

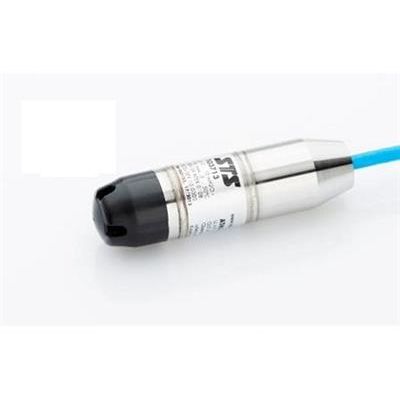

STS - Model ATM.1ST/N/Ex - Intrinsically Safe Submersible Level Transmitters
Certificate: ATEX & IECEx. Pressure measuring range: 1…250 mH2O. Accuracy: ≤ ± 0.10 % FS. Total Error Band: ≤ ± 0.30 %FS (-5…50 °C). Operating temperature: -5…80 °C. Process temperature: -5…80 °C. Output signal: 4…20 mA. Materials: Stainless steel, Titanium.
STS - Model PTM/N/Ex - Intrinsically Safe Submersible Level Transmitters - Programmable 4-20mA
Pressure measuring range: 1…250 mH2O. Accuracy: ≤ ± 0.25 / 0.10 % FS. Adjustable 1:4 of the nominal range within -5% to +105%. Operating temperature: -5…80 °C. Process temperature: -5…80 °C. Output signal: 4…20 mA. Materials: Stainless steel, Titanium.
