STS Sensor Technik Sirnach AG products

Pressure Transmitter - Intrinsically Safe Pressure Transmitters - ATEX / IECEx Certified

STS - Model ATM/Ex - Analog Pressure Transmitter

Pressure measuring range: 100 mbar … 1000 bar. Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS. Operating temperature: -25 … 85°C. Process temperature: -40 … 150°C. Output signal: 4 … 20 mA. Materials: Stainless steel, Titanium.

STS - Model ATM.ECO/Ex - Analog Transmitter with Temperature Compensation

Pressure measuring range: 100 mbar … 1000 bar. Accuracy: ≤ ± 0.2 % FS. Operating temperature: -40 … 125°C. Process temperature: -40 … 150°C. Output signal: 4 … 20 mA. Total Error Band: ≤ ± 0.30 %FS (0 … 70°C). Materials: Stainless steel.

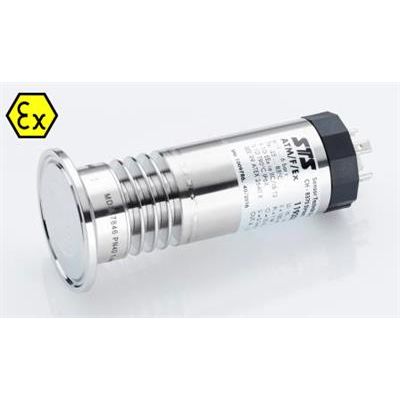

STS - Model ATM/F/Ex - Hygienic Pressure Transmitter

Pressure measuring range: 100 mbar … 25 bar. Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS. Operating temperature: -25 … 85°C. Process temperature: -25 … 100°C. Output signal: 4 … 20 mA. Materials: Stainless steel.

STS - Model TM/Ex - Passive Pressure Transmitter

Pressure measuring range: 100 mbar … 1000 bar. Accuracy: ≤ ± 0.50 / 0.25 % FS. Operating temperature: -40 … 125°C. Process temperature: -40 … 50°C. Outp t signal: mV. Materials: Stainless steel, Titanium.

STS - Model PTM/Ex - Programmable Pressure Transmitter

Pressure measuring range: 100 mbar … 1000 bar. Adjustable 1:4 of the nominal range within -5% to +105%. Accuracy: ≤ ± 0.25 / 0.10 % FS. Operating temperature: -25 … 85°C. Process temperature: -40 … 150°C. Output signal: 4 … 20 mA. aterials: Stainless steel, Titanium.
