System Group - Central Tubi products

Raw material - High Density Polyethylene (HDPE). Wall structure - Double Wall (corrugated exterior / smooth interior). Range of diameters - Nominal outer diameter from ø160 mm up to ø1200 mm. Colors - BLACK on the outside (with UV protection), BLUE on the inside.

Raw material -  POLIPROPILENO "ESP-PP" (Extra Flexural Modulus). Wall structure - DOUBLE WALL (corrugated exterior / smooth interior). Range of diameters - Nominal outer diameter from ø160 mm up to ø1200 mm. Colors - BLACK on the outside (with UV protection), ORANGE on the inside. Manufacturing standard - UNE EN 13476-3 European standard | ISO 21138-3 International standard. Ring Rigidity - SN16 (≥ 16 kN / m 2 ) . Applications - Sewer , stormwater and buried drainage systems without pressure. Especially suitable for areas with high mechanical requirements (ports, airport, highways, etc ...).

Raw material -  High Density Polyethylene (HDPE ). Wall structure - DOUBLE WALL (corrugated exterior / smooth interior). Range of diameters - Nominal diameter outside ø800 mm, ø1000 mm and ø1200 mm. Colors - BLACK on the outside (with UV protection), GRAY on the inside. Manufacturing standard - non-certified product. Ring Rigidity - SN2 (≥ 2 kN / m 2 ). Applications - Sewer, rainwater and buried drainage systems without pressure.

Raw material - high density polyethylene (HDPE) + Polypropylene (PP). Wall structure - Double Wall (corrugated exterior / smooth interior). Range of diameters - Nominal internal diameter from ø1200 mm up to ø2500 mm. Colors - BLACK on the outside (with UV protection), BLUE on the inside. Manufacturing standard - UNE EN 13476-3 European standard | ISO 21138-3 International standard | DIN 16961. Ring stiffness - SN8 (≥ 8 kN / m 2 ) - SN4 (≥ 4 kN / m 2 ) - SN2 (≥ 2 kN / m 2 ) . Applications - Sewer, storm drainage and buried drainage systems.

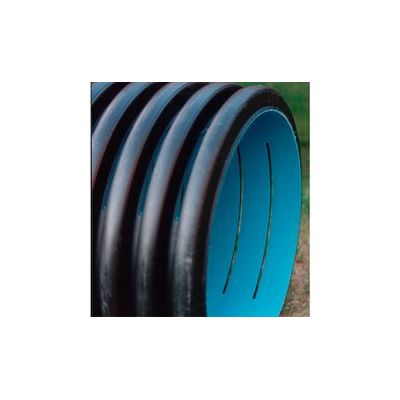

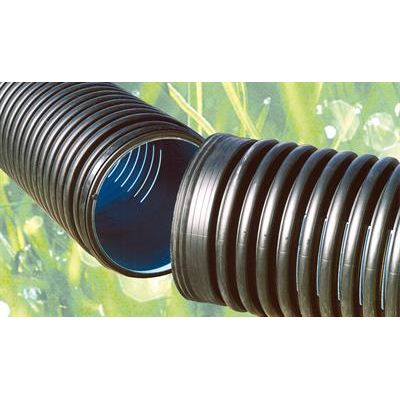

Raw material - High Density Polyethylene (HDPE). Wall structure - Double Wall (corrugated exterior / smooth interior). Range of diameters - Nominal outside diameter from ø50 mm to ø200 mm. Colors - BLACK exterior (with UV protection) / BLACK interior. Manufacturing standard - UNE 53994. Ring stiffness - SN4 (≥ 4 kN / m2) Slitting system . - 120º-240º-360º Microranges. Applications - Drainage in agricultural lands; Drainage in sports facilities (soccer fields, golf, etc.); Civilian drainage, roads and highways; Drainage in retaining walls; Land drainage in buildings (foundations); Landfill drainage (leachate collection).

Raw material - High Density Polyethylene (HDPE). Wall structure - Double Wall (corrugated exterior / smooth interior). Range of diameters - Outside nominal diameter from ø110 mm up to ø1200 mm. Colors - BLACK exterior (with UV protection) / BLUE interior. Manufacturing standard - UNE 53994 + UNE EN 13476. Ring stiffness - SN8 (≥ 8 kN / m2) Slitting system, Macro-holes 120º-240º-360º. Applications - Water abstraction from underground aquifers; Drainage of roads with high mechanical requirements: roads, highways, highways, highways, rail lines, etc .; Drainage in retaining walls; Landfill drainage for the collection of leachates; Collection of biogas in landfills by installing the pipe vertically as a well; Drainage in the field of mining.

Raw material - POLIPROPYLENE "ESP-PP" Extra Flexural Modulus. Wall structure - DOUBLE WALL (corrugated exterior / smooth interior). Range of diameters - Outside nominal diameter from ø110 mm up to ø1200 mm. Colors - BLACK exterior (with UV protection) / ORANGE interior. Manufacturing standard - UNE 53994 + UNE EN 13476. Ring Rigidity - SN16 (≥ 16 kN / m2) Slitting . System - 120º-240º-360º Macroranuras. Applications - Drainage of vials with high mechanical requirements: roads, highways, highways, railways, etc; Drainage of fluids in PADS for leaching (mining sector); Water abstraction from underground aquifers; Landfill drainage for the collection of leachates; Collection of biogas in landfills by installing the vertical pipe as a well.

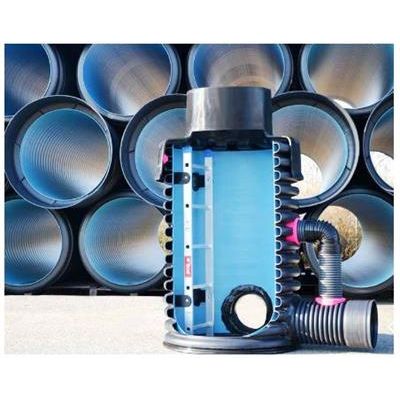

Base: the well is built on the MAGNUM pipe itself (compact system that does not alter the hydraulic flow). Internal ladder of registration: included in the extensions. Top: Cone of reduction in HDPE (outlet to ø625 mm, coinciding with the dimensions of the cast iron cover).

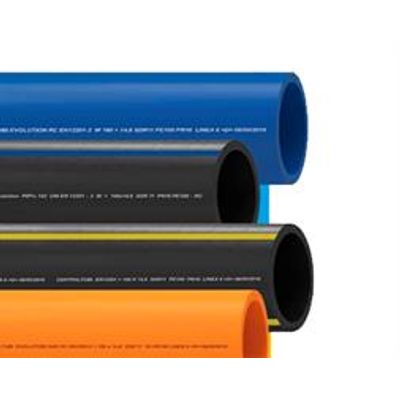

Smooth pressure pipe for drinking water and gas with diameters from ø20 mm up to ø1200 mm: PE100, PE100 RC ( Resistant to Crack ), PE100 DCR ( Dioxide Chlorine Resistant), PE100 FLEX ( High Flexibility ), PE100 GROOVED (drain).
