This TerraBasic in House module could be easily integrated in existing installations and must be installed in a building. The heat exchanger for the link to the heat source is also integrated. The request for more water could be answered with the usage of additional modules.

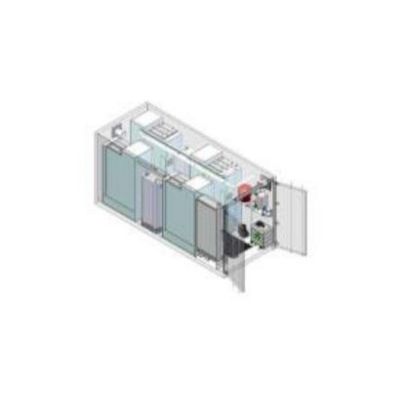

The Container Module TerraBasic 10 easily can be linked to existing heat sources. At the water interface, the water transportation system for feed water, product water and brine can be connected easily. The request for more water could be answered with the usage of additional container modules.

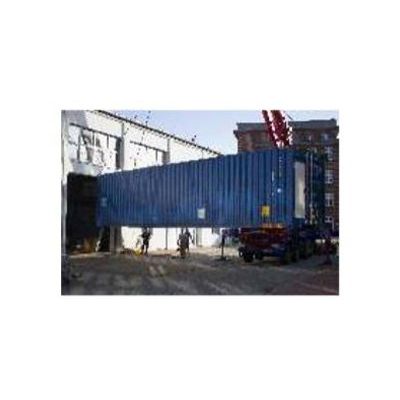

The Container Module TerraBasic 40 could easily be linked to existing heat sources. At the water interface, the water transportation system for feed water, product water and brine can be connected easily. The request for more water could be answered with the usage of additional container modules. The container modules are stackable.

The Container Module TerraBasic 50 could easily be linked to existing heat sources. At the water interface, the water transportation system for feed water, product water and brine can be connected easily. The request for more water could be answered with the usage of additional container modules. The container modules are stackable.

TerraPreCon2.5 (5.0 / 7.5) is used for the pre-concentration of liquids with low biology, which shall be treated in a ZLD process and whose low starting concentration does not warrant the use of a TerraSaline. The integrated mechanical tube cleaning allows the concentration of the liquids near to the saturation limit of the suspended solids.

The TerraSaline 3.5 (7.0) is used for the concentration of liquids with low biology until ZLD. The extraction of solids can be done manually or automatically. The request for more water to be treated can be easily answered with the usage of additional TerraSaline.

Production of a solid fertilizer from an ammonium sulphate solution (ASL). Storage capacity for digestate is a valuable asset that needs to be handled sparingly. The new Fertilizer Ordinance is exacerbating the existing capacity problems for many farmers and forces them to use digestate processing. These deprive water from the fermentation residue, and mostly nutrients. Frequently, nitrogen is discharged through the use of air washers in the form of an ammonium sulphate solution (ASL).

One of the biggest challenges of agriculture and the operation of biogas plants is the handling of nutrients. Various statutory provisions will in future limit the annual application rates of nitrogen and phosphates to the fields. This increases the surface pressure in agriculture in many regions. Substrate optimization towards gullies and away from corn also requires a system for nutrient separation before or during fermentation.

The solid-liquid-separation of TerraOrganic can process up to 60 m³ / day of digestate and is optimally designed for the needs of our system for refining fermentation residues. By using a larger press screw also a higher outlet is possible.
