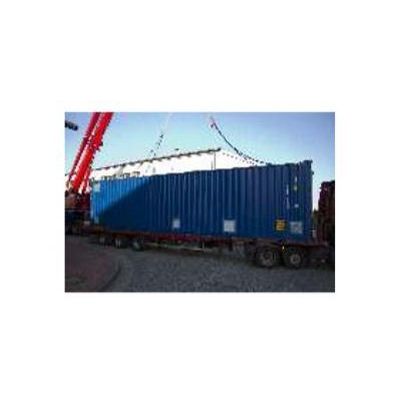

Terrawater - Model TerraBasic 50 -Container Module
FromTerrawater GmbH
The Container Module TerraBasic 50 could easily be linked to existing heat sources. At the water interface, the water transportation system for feed water, product water and brine can be connected easily. The request for more water could be answered with the usage of additional container modules. The container modules are stackable.
Most popular related searches
raw water
raw water tank
process water tank
water tank
process water
feed water
source water
temperature switch
containment product
Performance data
- process water: 50 m³/day
- conductivity: < 10 µS/cm
- temperature: approx. 10 °C higher as raw water temperature
Equipment
- switch cabinet: included
- remote control: included
- heat source interface: included
- raw water tank: optional
- process water tank: optional
- mineralization: optional
- water transport from and to the system: optional
Technical data
- dimensions WxDxH: 45‘ HC Container 12,2 x 2,4 x 2,9 m
- weight (empty): 17000 kg
- needed thermal input: approx. 500 kWth
- needed electrical input: approx. 7 kWel
- flow-temperature: 95 °C
- return temperature: 85 °C
- power supply: 380 V AC, 50/60Hz
- recovery rate: approx. 10%
- The container module could also work with other temperatures and thermal inputs.
- The daily production will then change.
Raw water
- salinity: max. 70.000 ppm
- temperature: bis zu 70°C
- coarse filtration: 1 mm
- Ambient conditions
- ambient temperature: up to 45°C
General
- Variations on the energy side may influence the daily production.
- Performance data may vary as a result of the ambient parameters.
- Subject to changes.
