Thomas Products Ltd. products

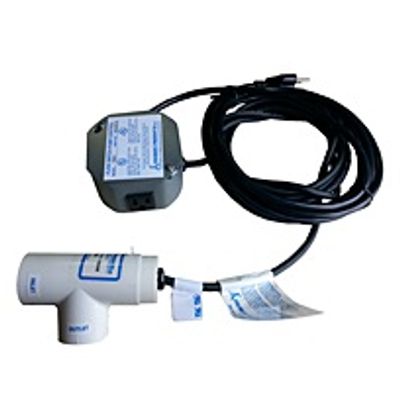

Type : Pump Control. Special Features : Clean-In-Place. Housing : PVC. Process Connection : 1" Slip Socket. UL Listed : Yes, file no. E86797. Flow Set Point : 0.5 GPM. Set Point Accuracy : +/- 20% Max. Set Point Differential : 20% Max. Mounting Attitude : Suggested: Inlet port down, lead wires up, set point may change otherwise. Wetted Materials : PVC, SST, Viton "A", Cerramic Ferrite. Pressure Range : -14.7 to 150 PSIG. Temperature Range : -20°F to + 122°F. "O" Ring : Viton "A". Spring : SST. Shuttle : PVC. Bonnet : PVC.

Type : Pump Control. Special Features : Clean-In-Place. Housing : PVC. Process Connection : 2" Slip Socket. UL Listed : Yes, file no. E86797. Flow Set Point : 0.5 GPM. Set Point Accuracy : +/- 20% Max. Set Point Differential : 20% Max. Mounting Attitude : Suggested: Ports horizontal with lead wires up, set point may slightly change otherwise. Wetted Materials : PVC, SST, Viton "A", Cerramic Ferrite. Pressure Range : -14.7 to 150 PSIG. Temperature Range : -20°F to + 122°F. "O" Ring : Viton "A". Spring : SST. Shuttle : PVC. Bonnet : PVC.
