Umwelttechnik MCZ GmbH

31 products found

Umwelttechnik MCZ GmbH Products

  • Environmental Technology - Analysers

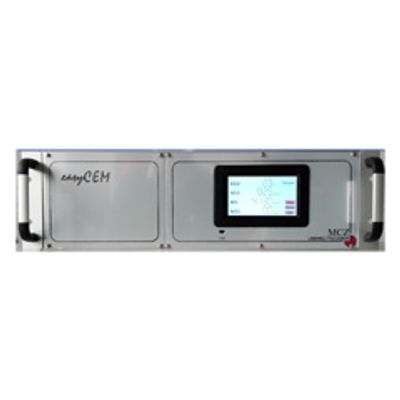

  • MCZ EasyCEM - Emission Gas Analyser System

    MCZ EasyCEM - Emission Gas Analyser System

    Emission analyser. For measuring of up to four gases simultaneously. Easy handling. Particularly suitable for application in industrial process gas analysis, control and regulation of processes as well as in laboratories.

  • Compressed Air Treatment and Zero Gas Systems - Mobile Complete Systems

  • MCZ - Model NGM 5 - Compact Zero Gas System

    MCZ - Model NGM 5 - Compact Zero Gas System

    Compact zero gas system for process and zero gas used in the gas analysis industry. Compressor (Thomas pump type 607CD22) requires no oil. Immediate functional, maintenance-free operation. Small system to generate zero gas, especially suited for labs or as a mobile system.

  • MCZ - Model NGA 100-6S - Compact Zero Gas System

    MCZ - Model NGA 100-6S - Compact Zero Gas System

    Small system to generate zero gas, especially suited for labs or as a mobile system, with permeation drier and gas tank. Compact zero gas system with permeation dryer and 6 l pressurizing gas tank for process and zero gas used in the gas analysis industry. Compressor requires no oil. Immediate functional, maintenance-free operation.

  • MCZ - Model NGA 600-25 MD - Compact Zero Gas System

    MCZ - Model NGA 600-25 MD - Compact Zero Gas System

    Compact zero gas system encased in sound insulated case, conditionally suitable as mobile unit (e.g., within a building). Compact zero gas system with permeation dryer and 25 l pressurizing gas tank. For process and zero gas used in the gas analysis industry. Compressor requires no oil. Compressor is mounted in a sound insulated case.

  • MCZ - Model NGA 600-4S - Compact Zero Gas System

    MCZ - Model NGA 600-4S - Compact Zero Gas System

    Compact zero gas system, conditionally suitable as mobile unit (e.g., within a building). Contrary to NGA 600-25 MD case is not sound insulated and the compressed air tank is smaller. Compact zero gas system with permeation dryer and 4 liter pressurizing gas tank. For process and zero gas used in the gas analysis industry. Compressor requires no oil.

  • Compressed Air Treatment and Zero Gas Systems - Complete Systems for Mounting in 19inches Rack

  • MCZ - Model NGA 19S - Compact Zero Gas System

    MCZ - Model NGA 19S - Compact Zero Gas System

    Compact zero gas system in 19' case with integrated catalytic gas purifier, permeation dryer, and 6 l pressurizing gas tank. For process and zero gas used in the gas analysis industry. Compressor requires no oil.

  • Compressed Air Treatment and Zero Gas Systems - Modular System for Stationary Installation (Wall or Rack)

  • MCZ - Customized Compressed Air Treatment Systems

    MCZ - Customized Compressed Air Treatment Systems

    Innovative, modular system concept for systems to treat/purify compressed air according to customer specification. Base don the specific needs of the customer, MCZ offers turnkey system solutions with all components required to generate and treat compressed air, onsite installation available upon request.

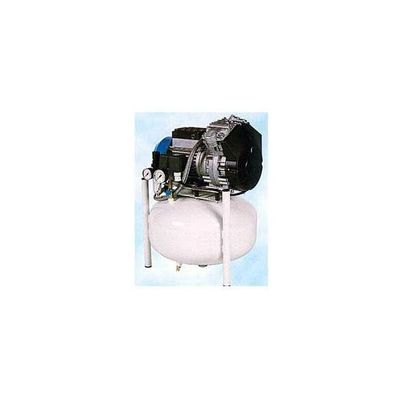

  • MCZ - Model NGA M1000 - Zero Gas System

    MCZ - Model NGA M1000 - Zero Gas System

    Compressed air system with compressor and filter. Oil-free dental compressor. For process gas, lab or dental gas or zero gas system for gas analysis. Modular system for stationary installation. Optionally with catalytic gas purifier and drier.

  • Compressed Air Treatment and Zero Gas Systems - Additionals

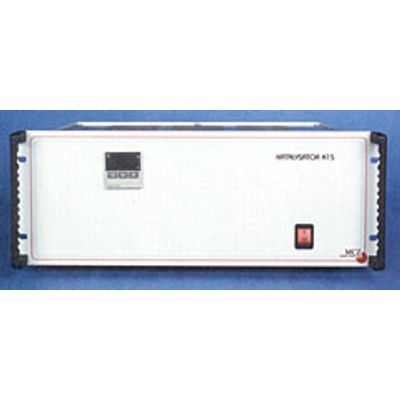

  • MCZ - Model K15 - Catalytic Gas Purifier System

    MCZ - Model K15 - Catalytic Gas Purifier System

    The catalytic gas purifier also removes hydrocarbons and CO from the treated zero gas. This gas free of HC and CO is suitable as process and carrier gas for gas chromatographs and to produce calibration gas for CO/HC analyzers. For process and zero air free of CnHm and CO.

  • MCZ - Span and Zero Gas Dampening System

    MCZ - Span and Zero Gas Dampening System

    The zero and span gas and sometimes the carrier gas as well might have to be set to a defined moisture level in order to obtain reproducible analysis values. To set a defined level of moisture for zero and span gases.

  • Gas and Dust Collectors - Gas Sample Collector

  • MCZ - Model MicroPNS - Gas Collector Control Module

    MCZ - Model MicroPNS - Gas Collector Control Module

    Application description:Collection on filter plates for the subsequent laboratory analysis (heavy metals) in samples. Control module MicroPNS as 19' rack model with switch for 8 filters. Collection system is mounted in a measuring station.

  • MCZ - Model MicroPNS - Gas Collector System

    MCZ - Model MicroPNS - Gas Collector System

    Control system for time or volume controlled gas sampling. Control system for the automated collection of gases and particles on adsorption tubes, wash-bottles, or filters. Application areas include emission/immission measurements, TLV value monitoring, landfill gas sampling.

  • Gas and Dust Collectors - Dust Collectors

  • Gas Compounding / Gas Analysis Calibration Systems - Simple Calibration Systems Without Controller for Span Gas Calculations

  • MCZ - Model MK5 BNT - Modular Gas Analysis Calibration System

    MCZ - Model MK5 BNT - Modular Gas Analysis Calibration System

    Calibration system especially suitable for mobile use as a transfer standard between different measuring stations. Mains power operated (220 Vac), standby mode via internal battery or 12 Vdc motor vehicle on board power supply. Manual presetting of gas flow using 10 turn-potentiometers. Gas flow control via mass flow controller.

  • Gas Compounding / Gas Analysis Calibration Systems - Calibration Systems With Integrated Controller for Required Flow Ratio Calculations

  • MCZ - Model CMK5 - Gas Analysis Calibration System

    MCZ - Model CMK5 - Gas Analysis Calibration System

    Several components can be calibrated sequentially. Reasonably priced system for measuring stations and laboratories. Concentration is set with keyboard, the required flow ratio is calculated internally. Several concentrations can be preset for a multi-point calibration and controlled or viewed via remote control or keyboard.

  • Gas Compounding / Gas Analysis Calibration Systems - Automated Calibration Systems Controlled Via Internal or External PC

  • MCZ - Reference Lab for Quality Assurance and Interlaboratory Testing

    MCZ - Reference Lab for Quality Assurance and Interlaboratory Testing

    PC-controlled multipoint multi-component span gas generation for up to 32 measuring stations or 25 m³ span gas / hour. Up to 16 bottled span gases can be connected and mixed into one span gas. An ozone generator can be integrated to generate ozone span gas or for gas phase titration with ozone.

  • Gas Compounding / Gas Analysis Calibration Systems - System for Span Gases According to Primary Standard

  • MCZ - Static Volumetric Gas Injections According to ISO 6144

    MCZ - Static Volumetric Gas Injections According to ISO 6144

    Mixing chamber (injection chamber) to inject a known volume of a component to generate a gas mixture with known concentration. The process is the primary standard to generate gas mixtures to calibrate gas analyzers. The development was for the most part carried out by the National EU Clean Air Reference Lab, a division of the Federal Environmental Agency, and is documented in ISO 6144 as a standard.

  • Specialized Systems

    Calibration systems and test benches/inspection stations for a variety of special applications - for example: Measuring gas path calibration. Fuel cell test benches. Mass flow controller test benches. Gas sensor test benches.

  • MCZ - Calibration System for Sampling Probes and Sampling Piping

    MCZ - Calibration System for Sampling Probes and Sampling Piping

    Mobile calibration system as transfer standard to determine the correction values for losses along the sampling path. A gas bag is used to add the known span gas concentration at the sampling of the measuring station. The analysis system can be calibrated to compensate for the losses due to sampling.

  • MCZ - Gas Sensor Test Bench

    MCZ - Gas Sensor Test Bench

    Automatic test bench to test gas sensors for response values, interference sensitivity, contamination, camouflaging.

  • MCZ - Mass Flow Controller Test Bench

    MCZ - Mass Flow Controller Test Bench

    Automatic testing of mass flow controllers for analog and digital MFCs. Up to 250 nominal values are automatically set for the controller being tested and the test values together with the gas pressure and the gas temperature are saved in a log.

  • Monitoring Stations & Mobile Stations

    This form lists the systems you added to the form in the product overview. Remove the checkmark from the box to delete a system from the request form. Use the text fields to add additional comments (such as total flow, etc.). State general requests in the text field below the address field.

  • MCZ - Monitoring Stations & Mobile Stations

    MCZ - Monitoring Stations & Mobile Stations

    For more than 25 years MCZ manufactures measuring stations and test vans for the most diverse tasks. Main operational areas are measurements in the range immission, emission, water, meteorology and radiation protection. All systems are conceived more or less individual systems after customer default and setting of tasks.
