VIG Industries products

VIG Industries, Inc. offers several models of Hydrocarbon Analyzers to rent for VIG Model 20 Oven Heated THC Analyzer, VIG Model 20/2 Oven Heated Dual Channel THC Analyzer, VIG Model 200 Non-Methane THC Analyzer, VIG Model 200/1 Methane / Non-Methane (NMHC) Hydrocarbon Analyzer, VIG Model 210 Methane / Ethane / Non-Methane-Ethane (NMEHC) / Total Hydrocarbon Analyzer, Ratfisch Model RS-55 CA Oven Heated THC Analyzer, Ratfisch Model RS-102 CA Spot Heated THC Analyzer.

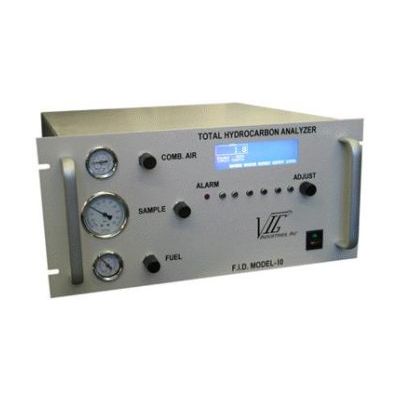

The VIG Industries, Inc. Model 10 is a microprocessor based, spot heated total hydrocarbon gas analyzer designed for high accuracy, sensitivity and stability. The Model 10 uses a flame ionization detector (FID) for continuous measurement of a dry sample stream at ambient temperature. The FID is spot heated to prevent condensation, and to provide repeatable, reliable performance in the analysis of a wide variety of hydrocarbon concentrations in gaseous mixtures or in ambient air.

The VIG Industries, Inc. Model-10/2 is a dual channel, microprocessor based, spot heated total hydrocarbon gas analyzer designed for high accuracy, sensitivity and stability. The Model-10/2 uses two flame ionization detectors (FID) for continuous measurement of two independent dry sample streams at ambient temperature. The FID are spot heated to prevent condensation, and to provide repeatable, reliable performance in the analysis of a wide variety of hydrocarbon concentrations in gaseous mixtures or in ambient air.

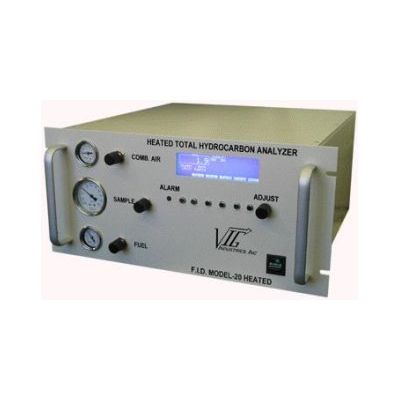

The VIG Industries, Inc. Model 20 is a microprocessor based, oven heated total hydrocarbon analyzer designed for high accuracy, sensitivity and stability. The Model 20 is designed to continuously measure one point.The Model 20 utilizes a flame ionization detector (FID). The FID, sample filter, all sample lines, solenoid valves, pump head, capillaries, and other components that come in contact with the sample are maintained in a temperature-controlled heated oven to prevent condensation, and to provide repeatable, reliable performance in the analysis of a wide varieties of hydrocarbon concentrations in gaseous mixtures or in ambient air.

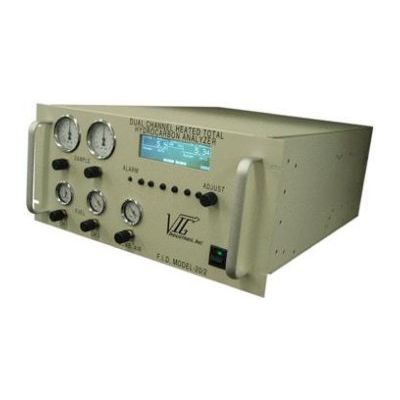

The VIG Industries, Inc. Model 20/2 is a microprocessor based, oven heated total hydrocarbon analyzer for high accuracy, sensitivity and stability. The Model 20/2 is designed to continuously measure two points.The Model 20/2 utilizes two flame ionization detectors (FID). The flame ionization detectors, sample filters, all sample lines, solenoid valves, pump heads, capillaries, and other components that come in contact with the samples are maintained in a temperature-controlled heated oven to prevent condensation, and to provide repeatable, reliable performance in the analysis of a wide varieties of hydrocarbon concentrations in gaseous mixtures or in ambient air.

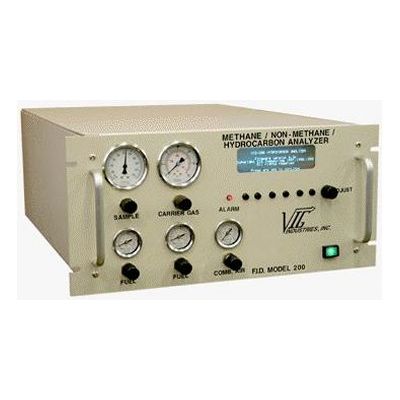

The VIG Industries, Inc. Model-200 is a microprocessor based, oven heated methane / non methane / total hydrocarbon gas analyzer designed for high accuracy, sensitivity and stability. The Model-200 uses two independent flame ionization detectors (FID), one to measure total hydrocarbons and the second coupled with a GC (gas chromatography) column for the separation of the methane and non methane components. A sample is fed to the analyzer via an internal heated pump to the first FID for a continuous real time total hydrocarbon reading

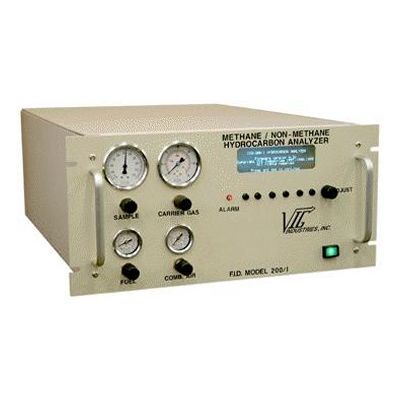

The VIG Industries, Inc. Model 200/1 is a microprocessor based, oven heated methane / non methane (NMHC) hydrocarbon analyzer for high accuracy, sensitivity and stability. The Model 200/1 measures methane and non methane hydrocarbons at preset intervals. The VIG Model 200/1 uses one(1) Flame Ionization Detector (FID) to obtain methane and non-methane hydrocarbon readings. A sample is fed to the analyzer via an internal heated pump. After the sample reaches the analyzer, a portion of the sample is trapped and fed through a GC (gas chromatography) column to separate the methane from the total and is fed to the FID detector for analysis. As soon as the methane is read, the remaining sample is back flushed through the GC column and fed to the FID detector for analysis of the non-methane component. The LCD display indicates the amount of methane and non-methane hydrocarbons.

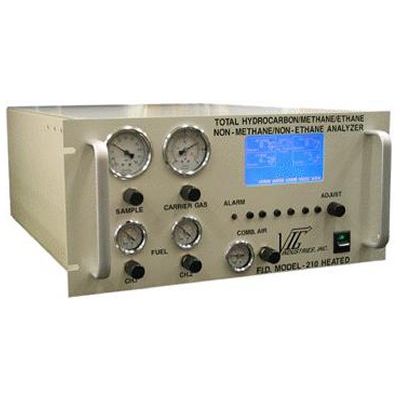

The VIG Industries, Inc. Model 210 is a microprocessor based, oven heated methane / ethane / non methane-ethane (NMEHC) total hydrocarbon analyzer for high accuracy, sensitivity and stability. The Model 210 measures methane, ethane, non methane-ethane hydrocarbons at preset intervals and continuously measures total hydrocarbons in real time. The Model 210 uses two (2) Flame Ionization Detectors (FID). One FID is used to obtain methane, ethane and non methane ethane hydrocarbon readings. The second FID is used to continuously measure total hydrocarbons. A sample is fed to the analyzer via an internal heated pump. After the sample reaches the analyzer it is fed to the first FID to measure total hydrocarbons. A small portion of the sample is trapped and fed through a GC (gas chromatography) column to separate the methane and ethane from the total and is fed to the second FID detector for analysis

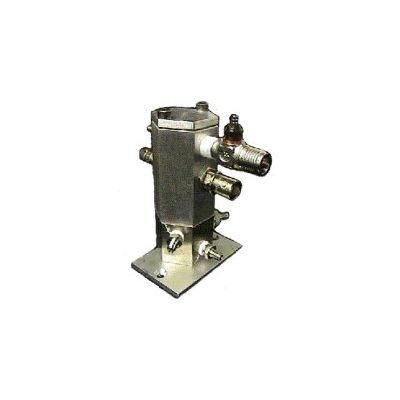

VIG Industries manufactures its own flame ionization detector. All parts and all related hardware which are exposed to the sample are made of 316 stainless steel. The inner chamber is lined with Teflon to prevent any corrosion or contamination. All electrical connections use twist type BNC connectors to insure good contact. Glow plug is located in the exhaust path to insure easy ignition. All capillaries can be easily removed & replaced by the customer in the field.
