WesTech Engineering, LLC products

An excellent choice for achieving optimum solution recovery and maximum solids dryness, the WesTech Filter Press is available from 1m2 to 500m2 at operating pressures up to 25 bar. The press comprises a steel framework with a hydraulic closing cylinder which locks a pack of filter plates in place. The filter plates have an internal recess, with a feed inlet and a filtrate drainage grid.

WesTech Horizontal Belt Filters provide a continuous vacuum on a horizontal plane. Slurries are fed onto a filter cloth supported by a traveling drainage belt. Horizontal belt filters are especially adaptable to applications where low cake moisture is desirable.

WesTech`s high capacity vacuum disc filters offer exceptionally large filtration area per square foot of floor space and provide the latest innovations in disc filter center barrel design. The split center barrel design with offset flow tubes allows WesTech vacuum disc filter systems to increase filtrate removal, reduce wear on each flow tube, and provide a stronger, more efficient snap blow.

WesTech`s continuous rotary drum filters provide a wide range of liquid-solids separation for many types of industrial processing flow sheets. They offer the operating flexibility to handle dewatering, washing and clarification applications, or a combination of the two. WesTech drum filters are available with drums up to 13.5 ft in diameter and 36 ft in length and are built to customer specifications.

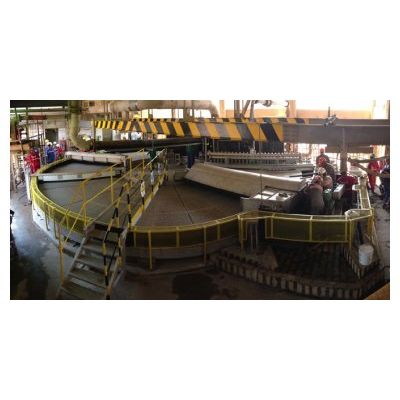

The WesTech Rotary Table Vacuum Filter is a continuous filtration unit ideal for handling large flow rates. The horizontal orientation of the rotary table enables a thick filter cake to form on the surface.
