197 products found
Wuxi Dajiang Environmental Technology Co., Ltd. products
Sedimentation System WWTP- Lamella Clarifier Separator

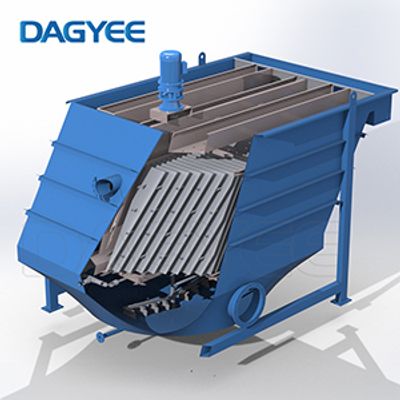

Dajiang - Pre Treatment Wastewater Inclined Plate Settler
Dagyee Lamella clarifier is an efficient combined sedimentation tank， According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity. Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen.

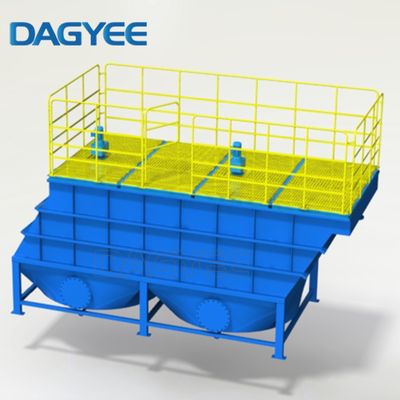

Dajiang - Waste Water Inclined Plate Settler
Dagyee Lamella clarifier is an efficient combined sedimentation tank， According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity. Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen.

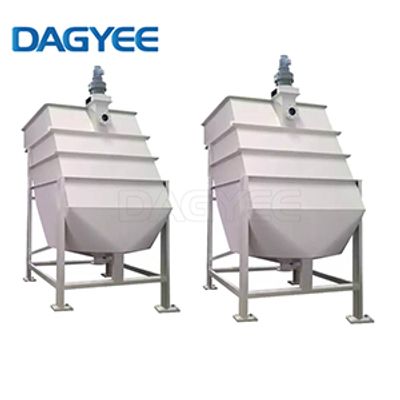

Dajiang - Lamella Clarifier Separator Inclined Plate Settler Water Treatment
Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir. ADVANTAGES Durable stainless steel construction: • Optimised solids settling using stainless steel plates with a smooth mill finish, ensuring no plate clogging or sludge build-up. • Low maintenance; only a hose down required. • Minimisation of thermal current and wind effects on settled water quality.

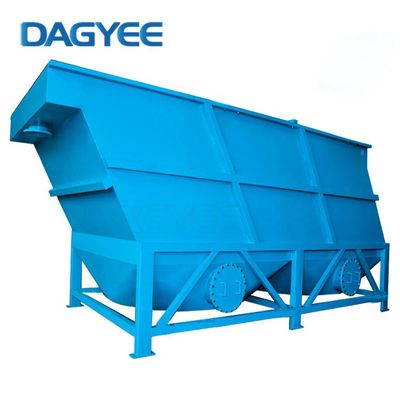

Dajiang - Industrial Sedimentation Tank Inclined Plate Tube Settler Wastewater Pre Treatment WWTP Lamella Clarifier
Lamella Clarifier is fitted with a plate pack to maximise the effective settling area of the unit and a conical sludge hopper in a small footprint. Lamella clarifiers are ideal for applications where the solid loading is variable and solid sizing is fine. Lamella Clarifiers are considered to be one of the best options for pre-treatment ahead of more sophisticated treatment technologies because of their ability to remove a significant solids loading. The MAK Water Lamella Clarifier can be integrated into a treatment process or as a stand-alone unit. Typical applications are for separation of grit or metal removal or any other application where the solids have a specific gravity >1.0.

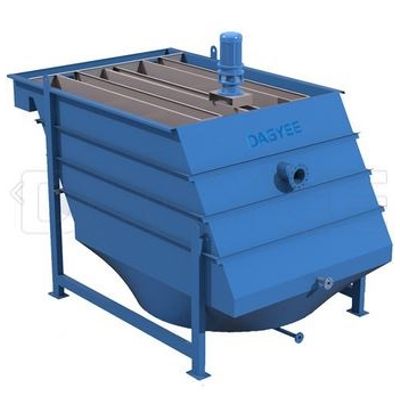

Dajiang - Lamella Separator Inclined Plate Settler Horizontal Plate Clarifiers
The clarifier consists of a series of inclined plates, which are arranged to form a separate sedimentation chamber between adjacent plates. The raw water is first fed to Static Mixer. Chemicals like alum, poly electrolyte are added prior to static Mixer for proper mixing of chemicals in water. Water from Static mixer enters in Flocculator in which paddle type agitator is provided for gentle mixing. Polymer is added for flocculation of coagulated particles.

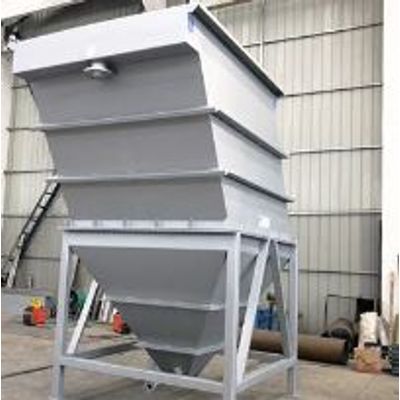

Dajiang - Lamella Tube Settlement Inclined Plate Sedimentation Tank
Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids. They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.

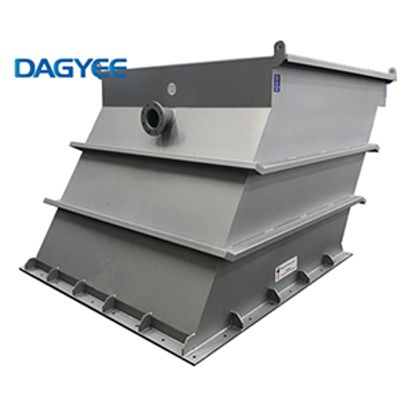

Dajiang - Small Lamella Sedimentation Plate Tank Clarifier With Frp Spirulina Washer Wastewater For Sewage Treatment
Lamella clarifiers are capable of managing feed water with high concentration of suspended solids. Separation results will vary depending on the feed water quality and types of contaminants. The feed water enters the lamella clarifier through the inlet channel on the top and flows to the bottom of the separator. The water is led back to the top, on its way the water flows through the lamellas, onto which the solid particles settle. Treated water flows to the top and reaches the outlet by passing a weir. The sludge slides down the lamellas and is collected in the sludge funnel. A rabble rake can be installed to prevent caking of the sludge in the conical hopper. The sludge is exported at intervals.

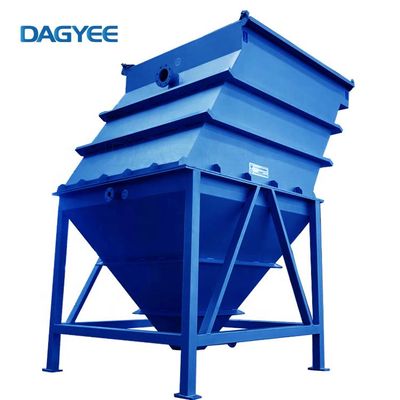

Dajiang - Inclined Settler Tube Lamella Clarifier For Industrial Waste Water Treatment
Lamella clarifier also called inclined plate sediment tank. It is good at high efficient combined type settling tank; set many dense inclined tube packing in sediment area, to make the suspended impurity in water sediment, water rise flow along inclined tube, the separated sludge down to the tank bottom along the inclined tube by gravity, then discharge it in concentration. Such tank can improve sediment efficiency 60~70%, it can improve treatment capacity 3~5 times in the same area. It can design different flow rate inclined plate sediment device according to raw waste water test report, it need dose flocculant usually.
Dajiang - High Capacity Inclined Plate Settlers Within Coagulation Flocculation WWTP Waste Water Treatment
Lamella clarifiers are capable of managing feed water with high concentration of suspended solids. Separation results will vary depending on the feed water quality and types of contaminants. The feed water enters the lamella clarifier through the inlet channel on the top and flows to the bottom of the separator. The water is led back to the top, on its way the water flows through the lamellas, onto which the solid particles settle. Treated water flows to the top and reaches the outlet by passing a weir. The sludge slides down the lamellas and is collected in the sludge funnel. A rabble rake can be installed to prevent caking of the sludge in the conical hopper. The sludge is exported at intervals.
