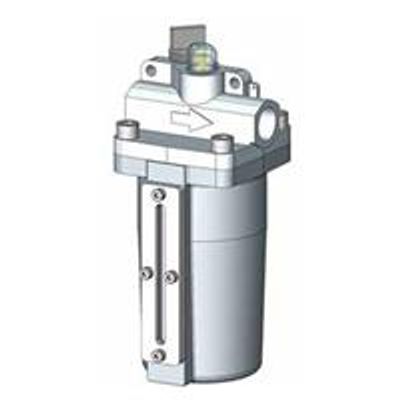

Midland-ACS - Model 3500 Series -1/2 Lubricator

Features and Benefits:

• Specifically designed for severe environments
• Accurate drip rate adjustment
• Can be filled under pressure
• Transparent sight feed dome
• Ambient temperature range -20 ºC to +80 ºC
• 316L stainless steel construction
• Built in flow sensor to automatically adjust lubrication delivery to meet wide air flow demand

Ambient Temperature Range:

• Standard: -20 ºC to +80 ºC (-4 ºF to +176 ºF)

Working Pressure:

• 17 bar (247 psi)

Ports NPT (BSP Option Available):

• 1/2" NPT

Bowl Capacity:

• 380 cc (23.2 cu ins)

Operating Media:

• Gases - air, inert gas, sweet (natural)

Construction Materials:

• Body/bonnet/bowl and internals: stainless steel 316L
• Seals: nitrile
• Bowl: 316 stainless steel
• Acrylic flow and sight glass
