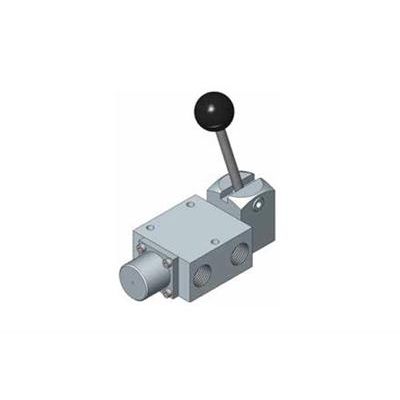

Midland-ACS - Model 3/2 and 5/2 -1600 Series Lever Operated (Detented) Spring Return

• Specifically designed for Severe Environments
• 3/2 and 5/2 Versions
• Ambient Temperature Range -20ºC to +180ºC
• 316L Stainless Steel Construction
• Designed for actuator control
• NACE option available

Working Temperature Range:

• Valve only version -20ºC to +180ºC (-4ºF to +356ºF)
• Low temperature version -50ºC (-58ºF ) (optional)

Working Pressure:

• 12 bar (174 psi) Maximum

Ports NPT (BSP Option Available):

• 1/2" NPT Line Port
• 1/8” NPT Pilot Ports

Operating Media:

• Gases - Filtered lubricated or non-lubricated
• Air, inert gas , sweet (natural) gases
• Sour gas option available

Construction Materials:

• Body: 316L Stainless Steel
• Spool: 316 Stainless Steel
• Spring: 316 Stainless Steel
• Seals: Fluoroelastomer

Maximum Flow:

at 6 bar, 1 bar differential

• 3/2 Valves - 3500 L/Min (123 SCFM)
• 5/2 Valves - 3500 L/Min (123 SCFM)
