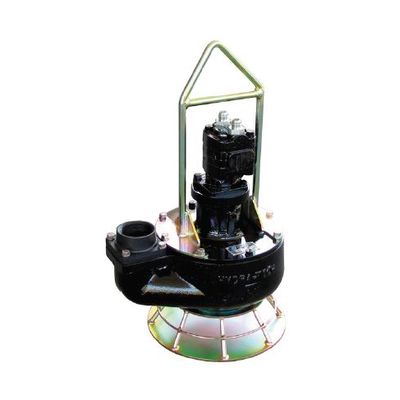

Hydra-Tech - Model S3VHL & S3VHLDI -3 Inch Hydraulic Submersible Sludge / Slurry Pump
FromHydra-Tech Pumps
The S3VHL is designed to pump sludge, slurries and liquids with stringy solids. Uses for this pump include liquid manure pumping, water treatment slurries and clarifier tanks. This versatile pump is offered in aluminum or ductile iron construction. Shut off head at 160 feet.
Most popular related searches
oil-lubricated seal
sludge pumping
sludge pump
slurry pump
tungsten carbide
clarifier tank
clarifying tank
water treatment
submersible sludge pump
submersible slurry pump
- Big Performance with small hydraulic input
- Small Overall Size allows pump to fit through a 20" diameter opening
- Oil Lubricated Seals (can run dry) ••
- Variable Speed hydraulic drive
- Fully Recessed SS Vortex Impeller (will pass 3" semi-solids)
- Can be bolted directly into a pipeline or fitted with a suction hose for underwater diver assisted dredging
- Tungsten Carbide Coated wear parts, available as an option
- Dependable gear motor
- Operates with our HT16 to HT35 power units or other hydraulic power sources capable of flows of 10 - 18 GPM
- Stainless Steel available
- Weight: Aluminum 176 lbs. (80 kg), Ductile Iron 289 lbs. (131 kg)
- Height: 33" (84 cm)
- Diameter: 19 3/4" (50 cm)
- Discharge: 3", NPT(F)
- Inlet Flange: Drilled for 3" and 4", 125# ASA
- Solid Handling: 3" (8 cm)
- Hose Ports: 1" (-16) SAE
- Pump Body: Heat Treated Aluminum, Ductile Iron
- Impeller/Screw: Stainless Steel
- Elastometers: Buna N (Std)
- Hydraulic Oil: 214-320 s.s.u. @ 100°F (64°C)
- Input Flow: Max 18 GPM (68 LPM)
- Operating Pressure: Max. 3000 PSI (204 Bar)
- Power Source: Any Open Center Hydraulic System
