IC Controls Ltd.

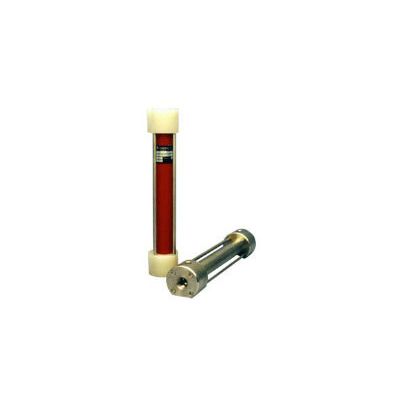

IC Control - Model 521 -316 SS Industrial Process Sampler
FromIC Controls Ltd.
We understand your need for a clean, representative, trouble-free sample for your on-line process monitors. Conventional filtering techniques accumulate dirt particles on the filter media until the media clogs and is replaced. The tangential filtration technique used in the model 521, however, passes virtually all of the particulate through the unit untouched.
Most popular related searches
on-line process monitoring
process monitoring
process monitoring system
sterilizer unit
particle filter
media filter
filter monitoring
- A backflush port is added to remove temporary accumulations or to inject a solution to sterilize the unit if used in the food industry.
- The model 521 sampler can be used on hydrocarbon as well as aqueous process streams. Particle retention is 100% at 50 microns or higher and greater than 50% at 10 microns.
- Materials: Housing 316 SS, cartridge, TFE, or PVDF
- Connections: Process in/out ½ inch NPT, Sample/backflush 1/8 inch NPT
- Temperature: 200 °C maximum
- Pressure: 50 PSIG nominal
- The use of the model 521 process sampler will substantially reduce your sample maintenance problems in the future.
