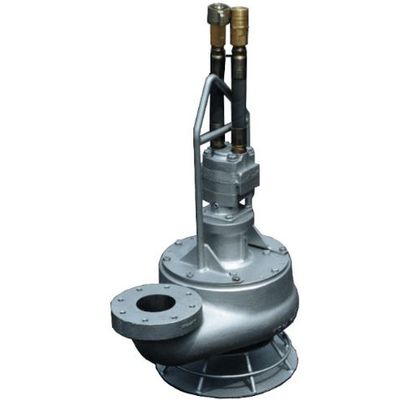

Hydra-TechModel S4THL & S4THLDI -4 Inch Hydraulic Submersible Vortex Flow Trash Pump

SHARE

Powerful and durable, the S4THL has proven to be an excellent sludge pump.  Primary uses for this pump are: oil refinery wastes, sewage digester clean-out, water waste sludge and desilting applications using divers. This versatile pump offers solids handling and high head capabilities. Shut off head at 200 feet.

Most popular related searches
  • Weight: Aluminum 209 lbs. (95 kg), Ductile Iron 294 lbs. (133 kg)
  • Height: 34 1/2" (88 cm)
  • Diameter: 25 1/2" (65 cm)
  • Discharge Size: 4", 125# ASA Flange
  • Inlet Flange: 4", 125#ASA
  • Solid Handling: 3 1/2" (9 cm)
  • Hose Ports: 1" (-16) SAE
  • Pump Body: Heat Treated Aluminum, Ductile Iron
  • Hose Ports: Stainless Steel
  • Elastometers: Buna N (Std)
  • Input Flow: Max. 30 GPM (1 14 LPM)
  • Operating Pressure: Max. 3000 PSI (204 Bar)
  • Power Source: Any Open Center Hydraulic System
