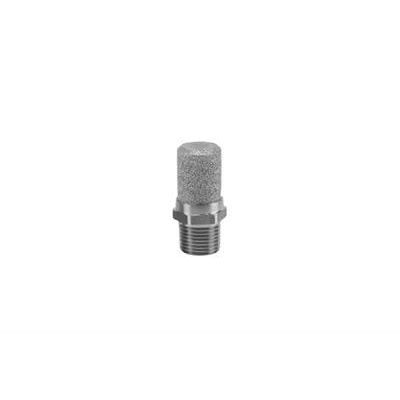

Midland-ACS - Model 316L -4500 1/4, 3/8, 1/2 NPT NRV Breathers

• Specifically designed for severe environments
• Ambient Temperature Range -20 ºC to +70º C
• 316L Stainless Steel

Working Temperature Range:

• -20 ºC to +70 ºC (-4 ºF to +158 ºF)

Working Pressure:

• 12 bar (174 psi)

Ports NPT (BSP option available):

• 1/4” to 1/2”

Operating Media:

• Gases - filtered lubricated or non-lubricated
• Air, inert gas, sweet (natural) gases

Maximum Flow:

At 6 bar, 1 bar differential:

• 1/4” - 646 L/Min (23 SCFM)
• 3/8” - 1300 L/Min (45 SCFM)
• 1/2” - 1550 L/Min (54 SCFM)

Construction Materials:

• 316L Stainless Steel
• Non-return sleeve: silicon
