GrayWolf - Model PC-3016A - 6-Channel Particle Counter
From Particulate Meters, Monitors, Instruments

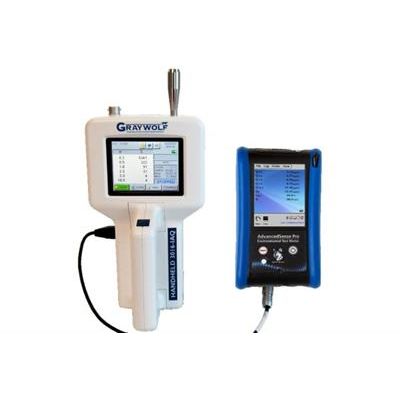

Use the PC-3016A as a stand-alone particle meter, plug it into a mobile computer or into a sophisticated AdvancedSense/WolfPack system for simultaneous connection with GrayWolf’s DirectSense probes.
Product Overview
- Ergonomically designed and lightweight, the PC-3016A is the most advanced handheld particle counter on the market.
- Easily download data from the PC-3016A using the includedWolfSense PC Software to create high quality trend/bar graphs/tables, useWolfSense’s advanced organizational features or simply export to Microsoft Excel®.
- Optionally add Advanced Report Generator software for extremely efficient, automated reporting of particle count/concentration data.
- Offering 6 channels of simultaneous particle counting, the PC-3016A displays both cumulative and differential particle count data on its easy-to-read 3.5” (8.9 cm) color touch screen.
- Alternate displayed/logged readings from particle counts to approximate mass concentration (µg/m3).
- Monitor particulate levels, even in those “hard-to-reach” areas where two-handed operation is unsafe.
Features:
- View / Log 6 Particle Sizes Simultaneously
- 0.3 to 0.5μm, 0.5 to 1.0μm, 1.0 to 2.5μm, 2.5 to 5.0μm, 5.0 to 10.0μm, 10+ μm
- View / Log as differential or cumulative
- Alternatively display μg/m3 in Concentration Mode including approximate PM2.5, PM10,TSP
- 0.1 CFM (2.8 LPM) Flow Rate
- Color Touch Screen Interface
- Removable / Rechargeable Li-Ion Battery
- OptionalTemperature / Relative Humidity Probe
- Internal Audible Alarm
- 2-YearWarranty
- Belt clip for walk-thru surveys or attachment to Tripods or to GrayWolf Area Monitors
- On-board Memory (stores 3,000 samples)
- Supplied with GrayWolf’sWolfSense® PC Software for data download and analysis
- OptionalWolfSense ARG Automated Report Generation Software
- Use as a stand-alone or interface to GrayWolf’s AdvancedSense® , DirectSense® and WolfPack® for Enhanced Logging and Expanded Features
- Proven reliability since 2007
- 2-Year Warranty
Benefits:
- Easy to Use (User-Friendly Interface)
- Expands your GrayWolf AdvancedSense, DirectSense andWolfPack parameters
- Low Cost of Ownership
- Efficiently Combines Particle Counting and Mass Concentration read-out in one Meter
Technical Specification:
- Size Range: 0.3 - 10.0 µm+ (145 µm max into inlet)
- Channel Sizes: 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm
- Optional: inquire about other size cuts (Particle Count only)
- Flow Rate: 0.1 CFM (2.83 LPM)
- Counting Efficiency: 50% @ 0.3 µm; 100% for Particles >0.45 µm (per ISO 21501-4)
- Laser Source: Extreme Life Laser Diode with >20 Years MTTF
- Zero Count Level:
- Concentration Limits: 4,000,000 Particles / ft3 @ 5% Coincidence Loss
- Calibration: Meets ISO 21501-4 Calibration using NIST Traceable PSL Spheres,
- DMA and Condensation Particle Counter
- Count Modes: Automatic, Manual, Beep, Concentration, Cumulative/Differential, Mass Concentration
- Data Storage (on-board): 3,000 Sample Records, Rotating Buffer (includes particle and environmental data, plus alphanumeric location and time)
- Communication Modes: RS232 converted to USB (via included RJ-45 to USB cable) for
- PCs or Printers. RS232 to AdvancedSense, WolfPack or PPC w/GrayWolf cable/software.
- Touch Screen Display: 3.5” (8.89cm, Color TFT)
- Alarms: Internal Alarm Buzzer. Alarms on Counts, Low Battery, Sensor Failure
- Sample Inlet: Isokinetic Sampling Probe
- Sample Output: Internally Filtered to HEPA Standards (>99.97% @ 0.3µm)
- Vacuum Source: Internal Pump, Automatic Flow Control
- Enclosure: High Impact Injection Molded Plastic (with handle)
- Power: External 100-240V, 50-60Hz Power Supply (12VDC, 1.25A)
- Battery: Li-Ion, Removable & Rechargeable
- Dimensions: 8.75' x 5.0' x 2.5' (22.23 x 12.7 x 6.35 cm)
- Weight: 2.2lb (1kg)
- Languages: English (U.S.), Deutsch, Español, François, Italiano
Environmental Conditions:
- Operating: 50°F to 104°F (10°C to 40°C) / 20% RH to 95% RH non-condensing
- Storage: 14°F to 122°F (-10°C to 50°C) / Up to 98% RH non-condensing
Accessories Included:
- Operating manual on CD, Removable battery, Isokinetic Sample Probe (direct mount), Purge (zeroing) Filter, 100/240V AC charger/adapter, Belt Clip, WolfSense PC Data Analysis Software.
Options:
- PC-GW6AAS-KIT also includes PCC-GW6 hardshell carrying case, interface cable for interface to AdvancedSense (specify PC-GW6AWP-KIT for WolfPack).
- PC-GW6ADSL-KIT also includes PCC-GW6 hardshell carrying case, mobile PC interface cable, and WolfSense LAP Software for interface to Tablet/Laptop/Desktop PCs
- PC-GW6-RHCF Temperature/Relative Humidity Probe 32-122oF (0-50oC), +/- 1oF (0.5oC), 15-90% +/- 5% RH
- WolfSense ARG Advanced, Automated Reporting Software
- PCC-GW6 Hardshell case. Dimensions: 38.1cm x 33.0cm x 17.8cm (15” x 13” x 7”)
- PCC-36P Hard-shell Security case with foam cutouts for AdvancedSense meter, sensor exposure for DSII probe plus space & inlet exposure for internal PC-3016
- AD-L71M-PC3016 Cable for interfacing PC-3016A to AdvancedSense Meter
- AD-L6P-PC3016 Cable for for interfacing PC-3016A to WolfPack (includes power socket for powering PC-3016A from the WolfPack)
- WS-LAP WolfSense application for WIN 7/8/10 PC interface
