Accessories for Light Fluid Separators

From

0

All KLARO separator systems can be expanded with an upstream sludge collector. Additional sludge collectors are used for pre-filtration of contaminants contained in the water, whose density is greater than that of water. The contaminants are deposited on the bottom. In addition, larger floating material is already stopped here. The efficiency of the sludge collector is dependent on the surface area, the dwell time, the flow path and the volume. 50% of the sludge collector volume (with static water level) can be used for storage of the sludge. Once this level is reached, the contents of the sludge collector must be disposed of. Freed of coarse sediments and floating debris, the wastewater flows into the separator. The incoming volume of flow is regulated by a baffle and directed into the container with an optimized flow. This also initiates the sedimentation process.

Additional sludge traps are useful and necessary with increased accumulation of dirt in the oil-containing wastewater, for example:
Washing areas for construction vehicles, construction machinery, agricultural machinery, truck wash stalls and automatic vehicle wash systems, e.g. gantry car washes or drive-through car washes.

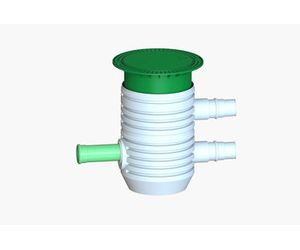

The KLARO separator can be expanded with an external sampling point. The sampling shaft is connected downstream of the separator tank.

The sampling shaft is part of the separator. It is used, in addition to the prescribed collection of wastewater samples, for the control, maintenance and cleaning of the system.

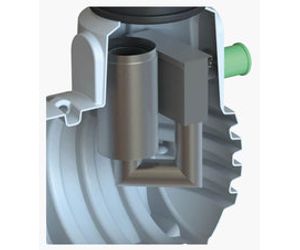

The KLsepa.compact separator system also provides the option of integrated sampling. A sampling unit it installed before the discharge so that it is accessible from the riser shaft. Attention: In many countries and regions an external sampling point is required.

  • Incl. standard lip seals for easy connection
  • Sealed to ground level
  • Easily adapted to ground level with telescopic/tilting dome shaft
  • Excellent stability due to modern manufacturing
  • Unique precision fit of the components through new production process
  • Suitable for foot traffic, or car/truck traffic with standard concrete rings and covers (supplied by customer)
  • Fully adjustable ground level cover over the tank top, tiltable to 5°. Ideal for asphalt surfaces

The dome assemblies are fully adjustable for height and tilt (up to 5%) providing a high degree of flexibility in installation.
