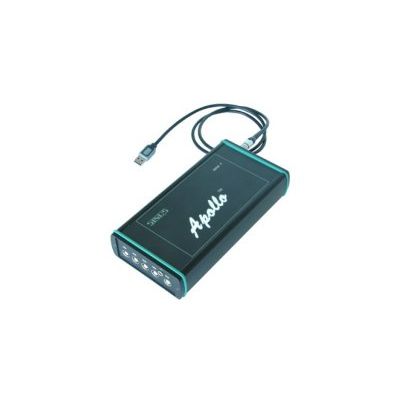

Sinus - Model Apollo™ Box -Acoustic Analyzer with 24-bit ADC and USB 2 Interface
The Apollo-Box is a flexible and reasonably priced 2- or 4-channel data acquisition system with a USB 2.0 interface. This small and robust box transforms a PC combined with our flexible software into a high-quality multi-channel measuring instrument for a wide variety of acoustic and vibration measurement applications. Based on your measurement requirements you may choose from variants with 2 or 4 LEMO7 inputs or 4 BNC inputs. Further additional channels extend the functionality of the Apollo-Box. Among others 8 additional low-sample-rate channels and 2 tacho or trigger channels are available. You may also use the Apollo-Box as a channel extension to the Soundbook MK2 measurement system, for example.
According to your requirements you may choose from variants having 4 main channels with LEMO7 or BNC input connectors. The additional 8 slow channels, 2 Tacho & Trigger channels, Synchronization port and AUX port make the Apollo_box suitable for many applications. You can use up to 4 boxes with one PC to increase the number of channels; the Apollo_box can also be used as a channel extension unit for the ruggedized Soundbook_MK2.
The Apollo_box is particularly suitable for:
- Industrial safety and environmental protection
- Engineering services
- Quality assurance
- Research and development.
Our SAMURAI™ 2.0. software package includes sound level meters according to IEC 61672-1 and third-octave analyzers according to IEC 61260, with 2 or 4 channels. For multi-channel systems with 4x Apollo_box we offer the extension to 16 channels.
Alternative software solutions include:
- SMT (SINUS Matlab Toolbox) for individual programming
- µREMUS for mechanical investigations
- AFD 1000 for measurements with impedance tube.
In combination with the modular software packages offered, Apollo™ can be employed for the following applications (and more):
- Sound level measurement
- Frequency analysis
- Signal recording
- Human vibration measurement
- Order analysis
- Pass-by noise measurement
- Building acoustics
- Machine vibration measurement
- Modal analysis
- Order tracking analysis
- Operational vibration analysis
General technical specification of APOLLO_box
The following data refer to the 4-channel versions Apollo_box_4L (LEMO7) and Apollo_box_4B (BNC). Alternatively we offer the Apollo_PCIe slot card with 4 input channels (BNC) or 8 input channels (SMB). The Apollo_box is able to operate with any Windows-based PC via USB 2 interface.
- Recommended PC data:
- Processor : Intel™ dual core, 2 GHz, 2 GB RAM
- Display : TFT 10.4" 1024 x 768
- Storage medium : HDD 160 GB
- Interface : USB 2
- Operating system : Windows XP, Windows 7
- Input channels 1-4
- Resolution : 24-bit
- Real-time bandwidth : DC ... 20 kHz @ 4 channels (40 / 80 kHz on request)
- Dynamic range : 110 dB
- Random noise : < 1 µV(A), < 2 µV(Z) @ 0.1 Hz ... 40 kHz
- Sample rates : 51.2 kHz (102.4 kHz / 204.8 kHz on request)
- Decimation : down to 200 Hz sample rate, selectable per channel
- Anti-aliasing filter : yes
- Max. input voltage : ± 10 V peak
- Amplification : 0 dB, 20 dB
- Overload detection : yes
- Phase mismatch : < 0.1° @ 20 Hz ... 20 kHz
- Offset adjust : yes, automatically with self-calibration
- Input coupling : DC, AC 0.15 Hz, HP 10 Hz, LP 2 kHz
- Microphone power supply : ± 14 V, + 20 / 63 / 200 V switchable (with BNC versions on AUX only)
- ICP power supply : 2 mA switchable
- Support of IEEE 1451.4 : yes
- AUX channels
- Digital Input : 2x TTL
- Digital Output : 2x TTL
- Microphone power supply : ± 14 V, + 20 / 63 / 200 V switchable
- Slow channels 1-8
- Resolution : 24-bit
- Real-time bandwidth : DC ... 200 Hz @ 8 channels
- Input voltage range : -25 V ... +25 V
- Output channels 1-2
- Resolution : 24-bit
- Real-time bandwidth : DC ... 20 kHz (40 / 80 kHz on request)
- Max. output voltage : ± 3.16 Vpeak
- Service channels
- Trigger : 2x Trigger / Tacho, trigger level settable via software
- Synchronization : Sample-synchronous synchronization on external clock (e.g. Soundbook_MK2)
- Physical characteristics
- Dimensions : 200 mm x 100 mm x 35 mm
- Weight : 750 g
- USB cable (standard) : customized USB cable 1 m
- USB cable (option) : customized USB cable 5 m
- Power supply : via USB 2
- Environmental conditions
- Protection rating : IP40
- Humidity : 30 % ... 90 %
- Temperature range : -10 °C ... +50 °C
- Storage conditions : -20 °C ... +60 °C, max. 95 % humidity
- EMC
- Emission : conforming with IEC 61000 - 6 - 3
- Immission : conforming with IEC 61000 - 6 - 1
