Axxiom Manufacturing, Inc.

- After Cooler System (ACS)

From

0

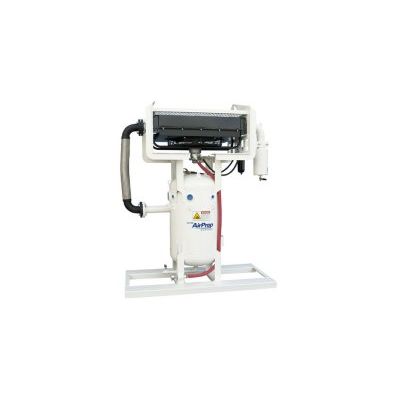

Designed for high efficiency removal of moisture, resulting in cool, clean and dry compressed air for use in abrasive blasting equipment. If your blasting operation or jobsite is in a region where there is not a big difference in the daily high and low temperatures, an aftercooler may be sufficient to handle the moisture in your blast system. Note: sodium bicarbonate (baking soda) applications most often require the additional drying capabilities of an air dryer for best performance.

  • Maximum Working Pressure:150 psig at 250 °F (10.3 bar at 121 °C)
  • Minimum Operating Temperature:35 °F at 150 psig (1.7 °C at 10.3 bar)
  • Moisture Removal:Stainless steel coalescent filter

  • High performance systems
  • Inlet prefilter removes oil, debris and contaminants

Additional Features:

  • Compact, vertical air flow design to improve efficiency
  • Pneumatic fan motor. Includes filter, regulator, lubricator and muffler (electric fan available)
  • Protective bar grating
  • Portable or stationary units
  • Easy transport. Skid mounted (excludes portable options) with forklift pockets and full load lifting eyes
