AR Filtrazioni - Model ARPX Series -Air Cleaners of Oil Mist Smoke Dust for Machine Tools

Indicated for the extraction, re-condensation and purification of the fumes, exhalations, odours and dusts generated during dry and wet machining, the series is ideal for purifying particles of variable sizes by simply using interchangeable filters of different filtration efficiencies. The first purifier designed and manufactured by AR FILTRAZIONI, aimed at satisfying the requirements of the market in terms of robust construction and ease of maintenance, to stand out from the competition it had to be MULTIFUNCTONAL AND ROBUST to satisfy the varying needs of a mechanical engineering workshop.

With a new layout of its componentry (motor, pocket filters and 2 high efficiency filters), the ARPX series represented a complete break from the centrifugal purification technology in vogue at the time. The young founders of AR FILTRAZIONI had understood that centrifuges (which still account for the majority of commercial oily mist purifiers) had too many problems: malfunction due to wear of the centrifuge motor bearings, vibration under heavy load. Quite apart from maintenance, which was then and still is very complex, since the purifier must be uninstalled for routine maintenance, which means long downtimes (just try opening a barrel of special fluid waste, positioned horizontally or, even worse, vertically with its opening at the bottom!).

In contrast, with the ARPX series you need only open a hatch to remove and replace the pocket filters. Two high efficiency filters are located at the sides and fit under pressure. The series is composed of 2 sub-series, with flow rates from 2000 to 3200 m³/h. The ARPX series, which has been on the market for 15 years, and is completely compliant with current legislation, fully satisfies the requirements of intense production: it is compact, robust, efficient, needing little maintenance which is quick and easy when necessary, and is regulated by a visual filter clogging indicator. Equipped with a dual high and very high efficiency filtration stage, EN 1822 compliant, it ensures filtration of up to 99.995% of particles > 0.15 µ (note that the mean diameter of fumes particles is always < 1 µ).

SUITABILITY

Indicated for the extraction, re-condensation and purification of the fumes, exhalations, odours and dusts generated during dry and wet machining, the series is ideal for purifying particles of variable sizes by simply using interchangeable filters of different filtration efficiencies. Thanks to its modular design, each purifier is equipped with a high (EPA) and very high (HEPA) efficiency filter stage, compliant with EN 1822, and suited for reducing micro-dust, micro-mist and fumes. The purifier can be equipped with a further dual stage composed of two active charcoal cells for eliminating noxious exhalations and odours. The series is equipped with low energy consumption motor rated class IE3, with a motor thermal cutout and visual filter clogging indicator. It is fitted with a drain system for recovering the condensed fluid.

The ARPX Series is suitable for its versatility in mixed and periodic processes, it is modular and agile in moving.

• Air flow rate [Mc/h]: 2400 Mc/h ÷ 3200 Mc/h
• Power [KW]: 1.5 KW ÷ 2.2 KW
• Noise level [dB]: 72 dB ÷ 76 dB
• Weight [Kg]: 110 Kg ÷ 170 Kg
• Efficiency: 95% ISO EN 16890 ÷ 99,995% (0,15µ) EPA/HEPA filters

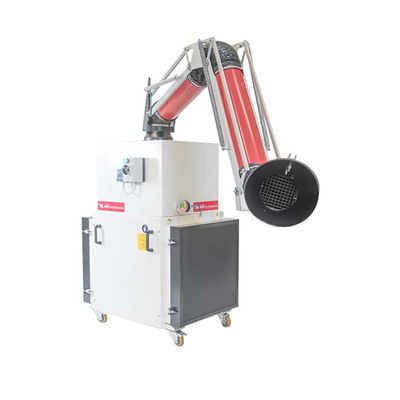

• Plus: Can be equipped with: Double stage of high/very high filtration efficiency. Double active carbon cells (exhalations and odours). Self-supported articulated arm. Tank for recovery of drain oil
