AR Filtrazioni - Model ARIS Series -Air Cleaners of Oil Mist Smoke Dust for Machine Tools
The new ARIS series is ideal for applications which require high air flows and filter stages capable of re-condensing and retaining large amounts of oily mist and fumes. The world of machine tools is in continuous evolution, machines are ever more high performance – and more polluting. The new ARIS series is ideal for applications which require high air flows and filter stages capable of re-condensing and retaining large amounts of oily mist and fumes. It can also be used for extracting non-explosive powders generated during brushing or finishing or materials with residue of abrasive paste. It has a vast range of applications which covers nearly all mechanical engineering applications, both dry and wet. Thanks to its high performance, the ARIS series is ideal for the semi-centralisation of multiple machine tools with the same characteristics.
The new ARIS series is composed of 4 models with air flow rates of 2000 to 6000 m3/h, suited to purifying particles of variable size with interchangeable filters of different filtration efficiencies.
Each purifier is equipped with a high (EPA) and very high (HEPA) efficiency filter stage, compliant with EN 1822, and suited for reducing micro-dust, micro-mist and fumes.
The units are equipped with low energy consumption motors rated class IE3 and motor thermal cutouts.
They are fitted with a drain system for recovering the condensed fluid.
Optional Accessories
- Self-Supporting Articulated Boom
- Active Charcoal Cell for Reducing any Exhalations and Odours
- Noise Attenuator
- Electronic Device to Monitor Filter Conditions

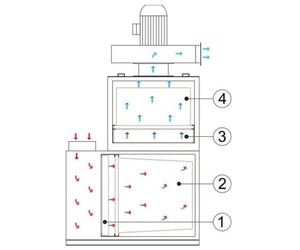

1- Prefiltration
European standards EN 779 - Filtration efficiency> 95% for 3 μ particles
2-Intermediate Filtration With Coalescence Effect
European standards EN779 Filtration efficiency up to 95% - Particles with a volume of 0.4 μ
3- Diffuser / Noise Reducer
4- High (EPA) Or Very High (HEPA) Efficiency Final Filtration
European Standard 1822 - Filtration efficiency up to 99.995% for particles of 0.15 μ
The new ARIS series is ideal for applications which require high air flows and filter stages capable of re-condensing and retaining large amounts of oily mist and fumes.
- Air flow rate [Mc/h]: 2500 Mc/h ÷ 6000 Mc/h
- Power [KW]: 1.5 KW ÷ 4.0 KW
- Noise level [dB]: 72 dB ÷ 80 dB
- Weight [Kg]: 210 Kg ÷ 370 Kg
- Efficiency: 95% ISO EN 16890 ÷ 99,995% (0,15µ) EPA/HEPA filters
- Plus: Can be equipped with: carbon cell for exhalation and odor or in BSA version with articulated support arm.
