Tekran Instruments Corporation

- Model 1304 - Air Filtration System

From

0

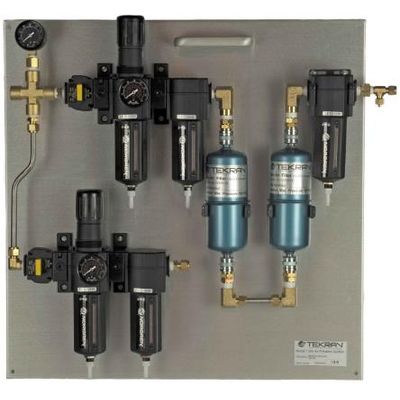

The Tekran Model 1304 Air Filtration System is an inexpensive, convenient conditioning unit for plant compressed air. The Series 3300Xi Mercury CEM requires two types of air in order to operate. Motive air is required to drive the inertial filter sample flow via an eductor. Zero Air is used for dilution and for the generation of calibration gas. Both types of air should be dry, oil free and particulate free, however the Zero Air is also scrubbed of all traces of mercury. The Model 1304 can supply enough air for two CEM systems. The long-life filter elements and mercury scrubbers are simple to change, inexpensive, and last in excess of one year under normal operating conditions.

  • Pressure regulators and shut-off valves for each supply
  • Automatic draining water knockout traps
  • Multi-stage particulate traps
  • Quick disconnects allow rapid changing of Hg traps

  • Provides Motive air (filtered only
  • Individual pressure regulators for each supply
  • Provides Zero Air (filtered and scrubbed)
  • Individual shut-off valves for each supply
  • Automatic draining water knockout traps
  • Multi-stage particulate traps
  • Quick disconnects allow rapid changing of Hg traps
  • Long life, commercially available filtration elements

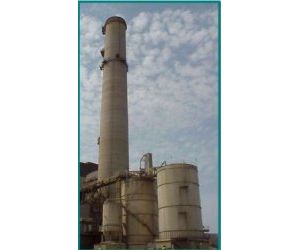

  • Coal fired power plants
  • Speciation studies
  • Waste incinerators
  • Bench scale testing
  • Other industrial sources
  • Mercury removal process monitoring

Physical

  • Mounting Board Dimensions: 24”W x 24” H
  • Mounting Centers: 22” x 22”

Connections

  • Inlet Fitting: 3/8” NPT Female
  • Motive Air Outlet: 3/8” compression
  • Zero Air Outlet: 1/4” compression
